Excluding particular JUnit test cases that marked as slow in the time of execution


Posted on Sunday Nov 01, 2015 at 03:43PM in Technology


Sometimes we need to create some slow test cases that involve some external resources such as databases, or external API servers. They are necessary to ensure that your application can integrate with such external resources while vast majority of test cases should stick with fast-running plain unit testing.

In such case, We usually wants to exclude such slow test cases from the ones that are frequently executed in local development environment so that we can get timely response from the tests. In this posting, I introduce you a solution that avoids maintenance of any hand-made listing of test cases.

Creating a suite that scans and runs all of test cases exist in classpath

First, assume we have a simple production class named Hello.

public class Hello {
    public String greetings(String name) {
        return name != null ? "hello, " + name : "hi, what's your name?";
    }
}

We also have a couple of test cases against the preceding class:

public class HelloTest1 {
    @Test
    public void test() {
        System.out.println("Running " + getClass().getSimpleName());
        Assert.assertEquals("hello, kyle", new Hello().greetings("kyle"));
    }
}

public class HelloTest2 {
    @Test
    public void test() {
        System.out.println("Running " + getClass().getSimpleName());
        Assert.assertEquals("hi, what's your name?", new Hello().greetings(null));
    }
}

Next, We’d like to introduce a test suite that automatically includes the preceding two test cases. Put a following dependency to your pom.xml:

<dependency>
    <groupId>io.takari.junit</groupId>
    <artifactId>takari-cpsuite</artifactId>
    <version>1.2.7</version>
    <scope>test</scope>
</dependency>

And create a test suite that named AllTests as follows. You can run this suite from your IDE or executing mvn -Dtest=AllTests test.

@RunWith(ClasspathSuite.class)
public class AllTests {
}

Involving a slow test case and exclude it

First, Create a marker interface which indicates that this test is slow:

public interface SlowTest {
}

Next create a slow test case which annotated with @Category(SlowTest.class) that we would like to avoid execute it frequently:

@Category(SlowTest.class)
public class HelloSlowTest {
    @Test
    public void test() throws Exception {
        System.out.println("Running " + getClass().getSimpleName());
        Thread.sleep(3000);
    }
}

Finally create a test suite that automatically excludes the test cases annotated as slow but executes rest of the test cases:

@RunWith(Categories.class)
@ExcludeCategory(SlowTest.class)
@SuiteClasses(AllTests.class)
public class AllExceptSlowTests {
}

You can run it on a daily basis instead of selecting root of your entire project and execute tests from your IDE or Maven without any hand maintenance of the listings of tests. For example, mvn -Dtest=AllExceptSlowTests test produces following output in very short-term execution time:

...
-------------------------------------------------------
 T E S T S
-------------------------------------------------------
Picked up _JAVA_OPTIONS: -Dfile.encoding=UTF-8
Running category.suite.AllExceptSlowTests
Running HelloTest1
Running HelloTest2
Tests run: 2, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 0.084 sec
...

The complete resources can be obtained from https://github.com/lbtc-xxx/junit-category


SwingIrc: A simple IRC client


Posted on Sunday Nov 01, 2015 at 01:42PM in Technology


About 6 years ago I’ve made a simple IRC client that uses Swing. I’ve digged source code of the app from my old PC by chance so I’ve Mavenized it and put it to GitHub. To be hornest, it’s a toy app but may someone like a student can refer it as an example of Java based GUI application.

How To Launch

How To Use

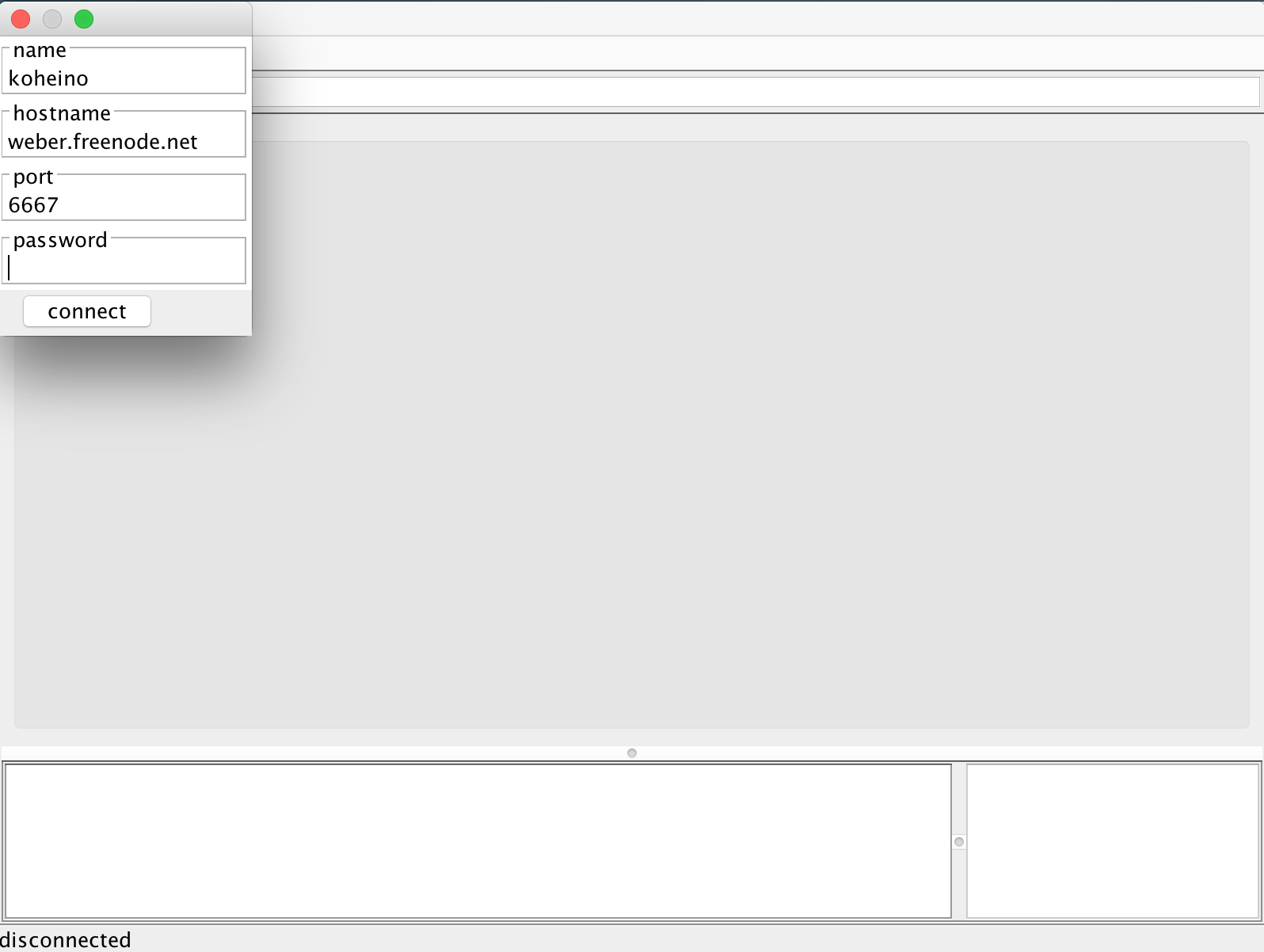

  1. Put name, hostname and port to the dialog and hit connect

    e3b99510 4351 4e7f bcbb 3bea23ff5f75
  2. Click File then select Join

    c3a05b27 567c 48b8 a098 602a9abb83bc

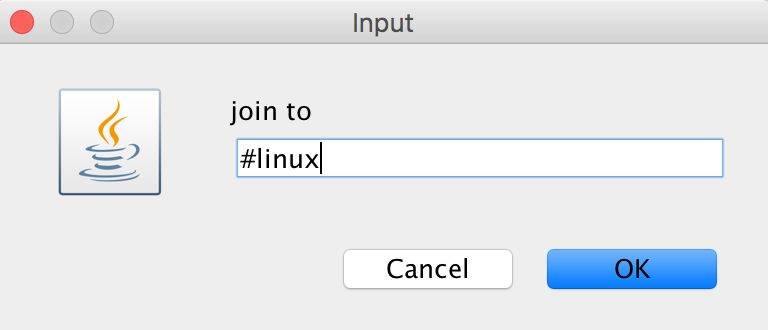

  3. Enter name of a channel to the dialog and hit OK

    a4eee820 b228 49c5 8714 b97d95154078

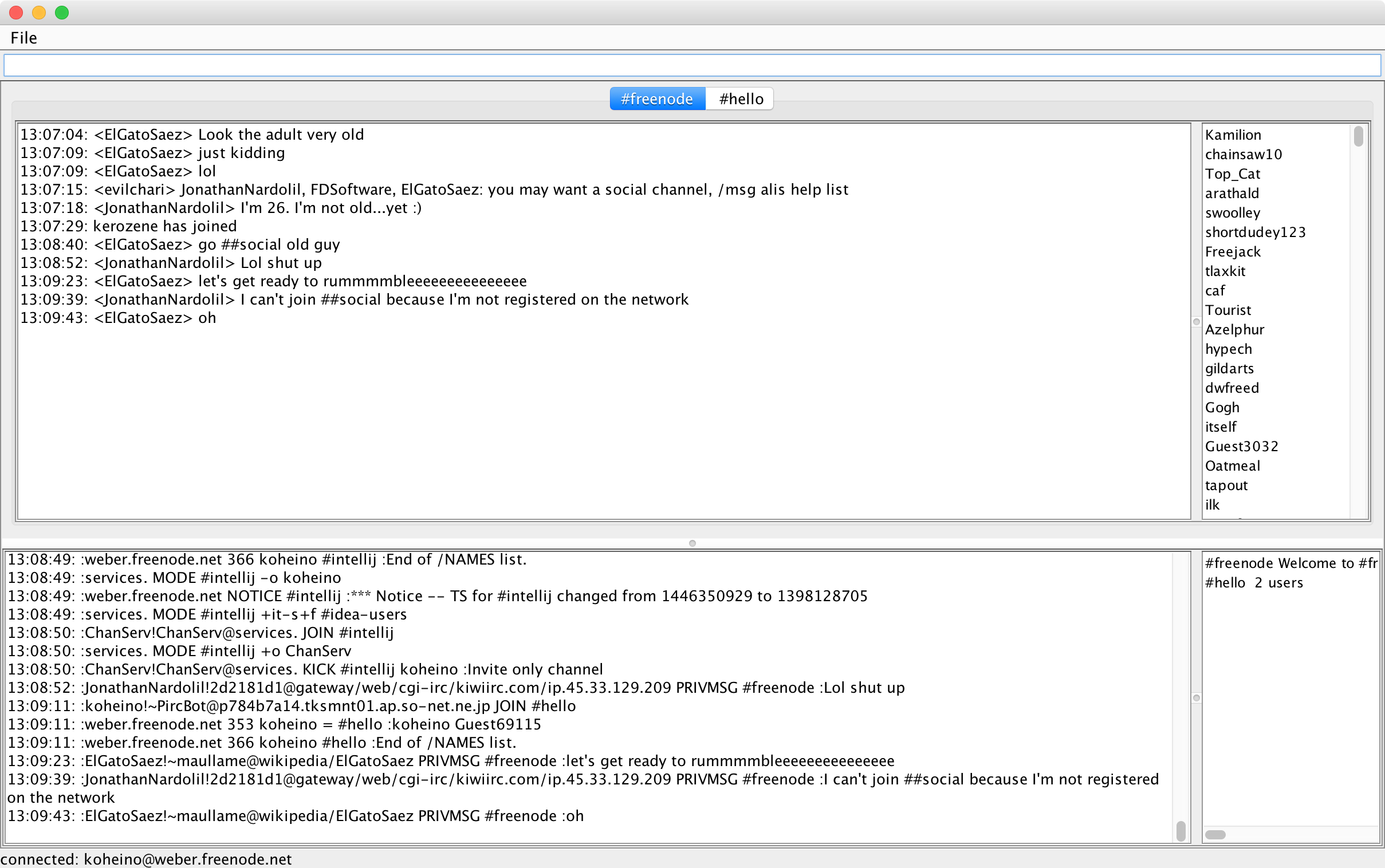

  4. Chat with other users

    1ac868a8 7c3d 49e8 98f4 f88d384573aa

Future plans

  • Rewrite entire the app with JavaFX

  • Implement more features

  • Involve automated GUI testing


Using JPQL IN clause with composite key


Posted on Sunday Oct 25, 2015 at 08:16PM in JPA


Assume we have an entity named Employee:

@Entity
public class Employee implements Serializable {
    @Id
    @GeneratedValue
    private Long id;
    @Embedded
    private EmployeeName employeeName;

    // accessor omitted

And EmployeeName:

@Embeddable
public class EmployeeName implements Serializable {
    private String firstName;
    private String lastName;

    // accessor omitted

Using preceding entity, We want to execute following JPQL:

SELECT e FROM Employee e WHERE e.employeeName IN :employeeNames

Will it work? It works for Hibernate 4.3.11.Final but unfortunately not for EclipseLink 2.6.1.

Hibernate generates following SQL for the JPQL and the parameter of a List contains two elements:

Hibernate: select employee0_.id as id1_0_, employee0_.firstName as firstNam2_0_, employee0_.lastName as lastName3_0_ from Employee employee0_ where employee0_.firstName=? and employee0_.lastName=? or employee0_.firstName=? and employee0_.lastName=?
[Employee{id=1, employeeName=EmployeeName{firstName='Scott', lastName='Vogel'}}, Employee{id=2, employeeName=EmployeeName{firstName='Nick', lastName='Jett'}}]

EclipseLink failed to generate correct SQL for the JPQL. In such case, you need to create a JPQL by hand or Criteria API that uses each column separately (lastName and firstName). EclipseLink produces following Exception:

Exception in thread "main" javax.persistence.PersistenceException: Exception [EclipseLink-4002] (Eclipse Persistence Services - 2.6.1.v20150916-55dc7c3): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.SQLDataException: An attempt was made to get a data value of type 'BIGINT' from a data value of type 'entity.EmployeeName'.
Error Code: 20000
Call: SELECT ID, FIRSTNAME, LASTNAME FROM EMPLOYEE WHERE (ID IN (?,?))
	bind => [EmployeeName{firstName='Scott', lastName='Vogel'}, EmployeeName{firstName='Nick', lastName='Jett'}]
Query: ReadAllQuery(referenceClass=Employee sql="SELECT ID, FIRSTNAME, LASTNAME FROM EMPLOYEE WHERE (ID IN ?)")
	at org.eclipse.persistence.internal.jpa.QueryImpl.getDetailedException(QueryImpl.java:382)
	at org.eclipse.persistence.internal.jpa.QueryImpl.executeReadQuery(QueryImpl.java:260)
	at org.eclipse.persistence.internal.jpa.QueryImpl.getResultList(QueryImpl.java:473)
	at main.Main.main(Main.java:45)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:497)
	at com.intellij.rt.execution.application.AppMain.main(AppMain.java:140)
Caused by: Exception [EclipseLink-4002] (Eclipse Persistence Services - 2.6.1.v20150916-55dc7c3): org.eclipse.persistence.exceptions.DatabaseException
Internal Exception: java.sql.SQLDataException: An attempt was made to get a data value of type 'BIGINT' from a data value of type 'entity.EmployeeName'.
Error Code: 20000
Call: SELECT ID, FIRSTNAME, LASTNAME FROM EMPLOYEE WHERE (ID IN (?,?))
	bind => [EmployeeName{firstName='Scott', lastName='Vogel'}, EmployeeName{firstName='Nick', lastName='Jett'}]
Query: ReadAllQuery(referenceClass=Employee sql="SELECT ID, FIRSTNAME, LASTNAME FROM EMPLOYEE WHERE (ID IN ?)")
	at org.eclipse.persistence.exceptions.DatabaseException.sqlException(DatabaseException.java:340)
	at org.eclipse.persistence.internal.databaseaccess.DatabaseAccessor.basicExecuteCall(DatabaseAccessor.java:684)
	at org.eclipse.persistence.internal.databaseaccess.DatabaseAccessor.executeCall(DatabaseAccessor.java:560)
	at org.eclipse.persistence.internal.sessions.AbstractSession.basicExecuteCall(AbstractSession.java:2055)
	at org.eclipse.persistence.sessions.server.ServerSession.executeCall(ServerSession.java:570)
	at org.eclipse.persistence.sessions.server.ClientSession.executeCall(ClientSession.java:258)
	at org.eclipse.persistence.internal.queries.DatasourceCallQueryMechanism.executeCall(DatasourceCallQueryMechanism.java:242)
	at org.eclipse.persistence.internal.queries.DatasourceCallQueryMechanism.executeCall(DatasourceCallQueryMechanism.java:228)
	at org.eclipse.persistence.internal.queries.DatasourceCallQueryMechanism.executeSelectCall(DatasourceCallQueryMechanism.java:299)
	at org.eclipse.persistence.internal.queries.DatasourceCallQueryMechanism.selectAllRows(DatasourceCallQueryMechanism.java:694)
	at org.eclipse.persistence.internal.queries.ExpressionQueryMechanism.selectAllRowsFromTable(ExpressionQueryMechanism.java:2740)
	at org.eclipse.persistence.internal.queries.ExpressionQueryMechanism.selectAllRows(ExpressionQueryMechanism.java:2693)
	at org.eclipse.persistence.queries.ReadAllQuery.executeObjectLevelReadQuery(ReadAllQuery.java:559)
	at org.eclipse.persistence.queries.ObjectLevelReadQuery.executeDatabaseQuery(ObjectLevelReadQuery.java:1175)
	at org.eclipse.persistence.queries.DatabaseQuery.execute(DatabaseQuery.java:904)
	at org.eclipse.persistence.queries.ObjectLevelReadQuery.execute(ObjectLevelReadQuery.java:1134)
	at org.eclipse.persistence.queries.ReadAllQuery.execute(ReadAllQuery.java:460)
	at org.eclipse.persistence.queries.ObjectLevelReadQuery.executeInUnitOfWork(ObjectLevelReadQuery.java:1222)
	at org.eclipse.persistence.internal.sessions.UnitOfWorkImpl.internalExecuteQuery(UnitOfWorkImpl.java:2896)
	at org.eclipse.persistence.internal.sessions.AbstractSession.executeQuery(AbstractSession.java:1857)
	at org.eclipse.persistence.internal.sessions.AbstractSession.executeQuery(AbstractSession.java:1839)
	at org.eclipse.persistence.internal.sessions.AbstractSession.executeQuery(AbstractSession.java:1804)
	at org.eclipse.persistence.internal.jpa.QueryImpl.executeReadQuery(QueryImpl.java:258)
	... 7 more

Complete source code that has been used in the test can be obtained from https://github.com/lbtc-xxx/jpa-composite-in


How to bind / lookup DataSource via JNDI without container


Posted on Sunday Oct 25, 2015 at 10:58AM in Technology


While I prefer deploying JPA based apps to a Java EE container and test it via Arquillian as integration testing, some occasions won’t allow it and need arises that using a Servlet container or Java SE environment.

To supply information that required to connect the database (e.g. JDBC URL or credentials), it’s preferable to use JNDI rather than using DriverManager or javax.persistence.jdbc.* properties in persistence.xml because using JNDI eliminates the need of managing such information in the application codebase, also it enables to use the container managed connection pool which is more flexible and scalable over another.

In such case, hard-coded JNDI name of a DataSource may be a problem in the time of testing because JNDI lookup doesn’t work without container as is. So we may need some considering of involve pluggable mechanism of acquiring java.sql.Connection instance or creating persistence.xml for unit testing.

These solutions are not much difficult to implement, but it’s preferable if JNDI lookup does work without container as well because it will decrease amount of testing specific code. In this posting, I’ll give you a complete example of looking up a DataSource without container using bare InitialContext and the non-jta-datasource persistence descriptor definition.

Environment

  • tomcat-catalina artifact of Apache Tomcat 8.0.28: Enables binding a resource to JNDI context in Java SE environment

  • Apache Commons DBCP 1.4: Supplies BasicDataSource class so make the example in database independent manner

  • Apache Derby 10.12.1.1

  • EclipseLink 2.6.1

  • Oracle JDK8u60

Dependencies

<dependencies>
    <dependency>
        <groupId>org.eclipse.persistence</groupId>
        <artifactId>eclipselink</artifactId>
        <version>2.6.1</version>
    </dependency>
    <dependency>
        <groupId>commons-dbcp</groupId>
        <artifactId>commons-dbcp</artifactId>
        <version>1.4</version>
    </dependency>
    <dependency>
        <groupId>org.apache.derby</groupId>
        <artifactId>derby</artifactId>
        <version>10.12.1.1</version>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.tomcat</groupId>
        <artifactId>tomcat-catalina</artifactId>
        <version>8.0.28</version>
        <scope>runtime</scope>
    </dependency>
</dependencies>

persistence.xml

Note that the non-jta-data-source is used with JNDI name of DataSource.

<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.1" xmlns="http://xmlns.jcp.org/xml/ns/persistence"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/persistence http://xmlns.jcp.org/xml/ns/persistence/persistence_2_1.xsd">
    <persistence-unit name="myPU" transaction-type="RESOURCE_LOCAL">
        <provider>org.eclipse.persistence.jpa.PersistenceProvider</provider>
        <non-jta-data-source>java:comp/env/jdbc/database</non-jta-data-source>
        <class>entity.Employee</class>
        <shared-cache-mode>NONE</shared-cache-mode>
        <properties>
            <property name="javax.persistence.schema-generation.database.action" value="create"/>
            <property name="eclipselink.logging.level" value="FINE"/>
            <property name="eclipselink.logging.parameters" value="true"/>
        </properties>
    </persistence-unit>
</persistence>

Employee.java

This is a simple JPA entity class that will be used in testing.

@Entity
public class Employee implements Serializable {
    @Id
    private Long id;
    private String firstName;
    private String lastName;

    // accessors omitted

Main.java

This binds a DataSource of Embedded in-memory Apache Derby database to java:comp/env/jdbc/database, then lookup it via InitialContext and EntityManagerFactory.

public class Main {
    private static final String JNDI = "java:comp/env/jdbc/database";

    public static void main(String[] args) throws Exception {
        bind();
        lookup();
        final EntityManagerFactory emf = Persistence.createEntityManagerFactory("myPU");
        populate(emf);
        query(emf);
    }

    private static void bind() throws NamingException {
        System.setProperty(Context.INITIAL_CONTEXT_FACTORY, "org.apache.naming.java.javaURLContextFactory");
        System.setProperty(Context.URL_PKG_PREFIXES, "org.apache.naming");

        final BasicDataSource ds = new BasicDataSource();
        ds.setUrl("jdbc:derby:memory:myDB;create=true");

        final Context context = new InitialContext();
        try {
            context.createSubcontext("java:");
            context.createSubcontext("java:comp");
            context.createSubcontext("java:comp/env");
            context.createSubcontext("java:comp/env/jdbc");
            context.bind(JNDI, ds);
        } finally {
            context.close();
        }
    }

    private static void lookup() throws NamingException, SQLException {
        final Context context = new InitialContext();
        try {
            final DataSource ds = (DataSource) context.lookup(JNDI);
            try (final Connection cn = ds.getConnection();
                 final Statement st = cn.createStatement();
                 final ResultSet rs = st.executeQuery("SELECT CURRENT_TIMESTAMP FROM SYSIBM.SYSDUMMY1")) {
                while (rs.next()) {
                    System.out.println(rs.getTimestamp(1));
                }
            }
        } finally {
            context.close();
        }
    }

    private static void populate(final EntityManagerFactory emf) {
        final EntityManager em = emf.createEntityManager();
        try {
            final EntityTransaction tx = em.getTransaction();
            tx.begin();
            final Employee emp = new Employee();
            emp.setId(1l);
            emp.setFirstName("Jane");
            emp.setLastName("Doe");
            em.persist(emp);
            tx.commit();
        } finally {
            em.close();
        }
    }

    private static void query(final EntityManagerFactory emf) {
        final EntityManager em = emf.createEntityManager();
        try {
            System.out.println(em.find(Employee.class, 1l));
        } finally {
            em.close();
        }
    }
}

Log

You can see the lookup() method dumped CURRENT_TIMESTAMP and EclipseLink successfully acquired a DataSource as follows.

2015-10-25 10:33:24.235
[EL Fine]: server: 2015-10-25 10:33:24.478--Thread(Thread[main,5,main])--Configured server platform: org.eclipse.persistence.platform.server.NoServerPlatform
[EL Config]: metadata: 2015-10-25 10:33:24.633--ServerSession(1323434987)--Thread(Thread[main,5,main])--The access type for the persistent class [class entity.Employee] is set to [FIELD].
[EL Config]: metadata: 2015-10-25 10:33:24.654--ServerSession(1323434987)--Thread(Thread[main,5,main])--The alias name for the entity class [class entity.Employee] is being defaulted to: Employee.
[EL Config]: metadata: 2015-10-25 10:33:24.656--ServerSession(1323434987)--Thread(Thread[main,5,main])--The table name for entity [class entity.Employee] is being defaulted to: EMPLOYEE.
[EL Config]: metadata: 2015-10-25 10:33:24.666--ServerSession(1323434987)--Thread(Thread[main,5,main])--The column name for element [firstName] is being defaulted to: FIRSTNAME.
[EL Config]: metadata: 2015-10-25 10:33:24.668--ServerSession(1323434987)--Thread(Thread[main,5,main])--The column name for element [lastName] is being defaulted to: LASTNAME.
[EL Config]: metadata: 2015-10-25 10:33:24.668--ServerSession(1323434987)--Thread(Thread[main,5,main])--The column name for element [id] is being defaulted to: ID.
[EL Info]: 2015-10-25 10:33:24.7--ServerSession(1323434987)--Thread(Thread[main,5,main])--EclipseLink, version: Eclipse Persistence Services - 2.6.1.v20150916-55dc7c3
[EL Fine]: connection: 2015-10-25 10:33:24.706--Thread(Thread[main,5,main])--Detected database platform: org.eclipse.persistence.platform.database.JavaDBPlatform
[EL Config]: connection: 2015-10-25 10:33:24.714--ServerSession(1323434987)--Connection(1872973138)--Thread(Thread[main,5,main])--connecting(DatabaseLogin(
	platform=>JavaDBPlatform
	user name=> ""
	connector=>JNDIConnector datasource name=>java:comp/env/jdbc/database
))
[EL Config]: connection: 2015-10-25 10:33:24.715--ServerSession(1323434987)--Connection(1465346452)--Thread(Thread[main,5,main])--Connected: jdbc:derby:memory:myDB
	User: APP
	Database: Apache Derby  Version: 10.12.1.1 - (1704137)
	Driver: Apache Derby Embedded JDBC Driver  Version: 10.12.1.1 - (1704137)
[EL Config]: connection: 2015-10-25 10:33:24.715--ServerSession(1323434987)--Connection(1634387050)--Thread(Thread[main,5,main])--connecting(DatabaseLogin(
	platform=>JavaDBPlatform
	user name=> ""
	connector=>JNDIConnector datasource name=>java:comp/env/jdbc/database
))
[EL Config]: connection: 2015-10-25 10:33:24.716--ServerSession(1323434987)--Connection(1740223770)--Thread(Thread[main,5,main])--Connected: jdbc:derby:memory:myDB
	User: APP
	Database: Apache Derby  Version: 10.12.1.1 - (1704137)
	Driver: Apache Derby Embedded JDBC Driver  Version: 10.12.1.1 - (1704137)
[EL Info]: connection: 2015-10-25 10:33:24.747--ServerSession(1323434987)--Thread(Thread[main,5,main])--/file:/Users/kyle/src/jndi-se/target/classes/_myPU login successful
[EL Fine]: sql: 2015-10-25 10:33:24.784--ServerSession(1323434987)--Connection(762809053)--Thread(Thread[main,5,main])--CREATE TABLE EMPLOYEE (ID BIGINT NOT NULL, FIRSTNAME VARCHAR(255), LASTNAME VARCHAR(255), PRIMARY KEY (ID))
[EL Fine]: sql: 2015-10-25 10:33:24.85--ClientSession(1027495011)--Connection(1688470144)--Thread(Thread[main,5,main])--INSERT INTO EMPLOYEE (ID, FIRSTNAME, LASTNAME) VALUES (?, ?, ?)
	bind => [1, Jane, Doe]
[EL Fine]: sql: 2015-10-25 10:33:24.877--ServerSession(1323434987)--Connection(640808588)--Thread(Thread[main,5,main])--SELECT ID, FIRSTNAME, LASTNAME FROM EMPLOYEE WHERE (ID = ?)
	bind => [1]
Employee{id=1, firstName='Jane', lastName='Doe'}

The complete source code can be obtained from my GitHub repository.


Working example of EclipseLink static weaving


Posted on Saturday Oct 24, 2015 at 03:37AM in JPA


These days I’m using EclipseLink at work. It runs on Servlet containers, unfortunately not Java EE containers at there so I have experienced some difference between them. A significant one is class weaving. The dynamic weaving is enabled by default in Java EE containers but not for Java SE environment. Weaving is a prerequisite of using some important functions such as Lazy Loading but it doesn’t work for default Java SE environment. In Java SE environment, EclipseLink requires a special prerequisite that set an agent in the time of launching JVM, or use static weaving to enable Lazy Loading.

Static weaving offers some performance benefit over Dynamic weaving because it doesn’t require runtime weaving step. I think it’s preferable so I tried it over another.

Environment

  • EclipseLink 2.6.1

  • Apache Derby 10.12.1.1

  • Oracle JDK8u60

Projects

This project contains three simple entity classes. Dept has many Employee, and Employee has one Phone.

Dept

@Entity
public class Dept implements Serializable {
    @Id
    private Long id;
    private String deptName;
    @OneToMany(mappedBy = "dept")
    private List<Employee> employees;

    // accessors omitted

Employee

@Entity
public class Employee implements Serializable {
    @Id
    private Long id;
    @ManyToOne(fetch = FetchType.EAGER) // default
    @JoinColumn(nullable = false)
    private Dept dept;
    private String firstName;
    private String lastName;
    @OneToOne(mappedBy = "employee", fetch = FetchType.LAZY) // overridden by LAZY
    private Phone phone;

    // accessors omitted

Note that the relation Employee.dept is set to EAGER, and Employee.phone is set to LAZY as FetchType.

Phone

@Entity
public class Phone implements Serializable {
    @Id
    @OneToOne
    @JoinColumn(nullable = false)
    private Employee employee;
    private String phoneNumber;

    // accessors omitted

persistence.xml

The persistence descriptor requires a property called eclipselink.weaving with the value static to enable static weaving.

<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.1" xmlns="http://xmlns.jcp.org/xml/ns/persistence"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/persistence http://xmlns.jcp.org/xml/ns/persistence/persistence_2_1.xsd">
    <persistence-unit name="myPU" transaction-type="RESOURCE_LOCAL">
        <provider>org.eclipse.persistence.jpa.PersistenceProvider</provider>
        <exclude-unlisted-classes>false</exclude-unlisted-classes>
        <shared-cache-mode>NONE</shared-cache-mode>
        <properties>
            <property name="javax.persistence.jdbc.driver" value="org.apache.derby.jdbc.EmbeddedDriver"/>
            <property name="javax.persistence.jdbc.url" value="jdbc:derby:memory:myDB;create=true"/>
            <property name="javax.persistence.jdbc.user" value="app"/>
            <property name="javax.persistence.jdbc.password" value="app"/>
            <property name="javax.persistence.schema-generation.database.action" value="drop-and-create"/>
            <property name="eclipselink.weaving" value="static"/>
            <property name="eclipselink.logging.level" value="FINE"/>
            <property name="eclipselink.logging.parameters" value="true"/>
        </properties>
    </persistence-unit>
</persistence>

pom.xml

The static weaving will be done by a convenient Maven plugin. Just put following plugin definition in your pom.xml and execute mvn clean install.

<build>
    <plugins>
        <plugin>
            <groupId>de.empulse.eclipselink</groupId>
            <artifactId>staticweave-maven-plugin</artifactId>
            <version>1.0.0</version>
            <executions>
                <execution>
                    <phase>process-classes</phase>
                    <goals>
                        <goal>weave</goal>
                    </goals>
                    <configuration>
                        <persistenceXMLLocation>META-INF/persistence.xml</persistenceXMLLocation>
                        <logLevel>FINE</logLevel>
                    </configuration>
                </execution>
            </executions>
            <dependencies>
                <dependency>
                    <groupId>org.eclipse.persistence</groupId>
                    <artifactId>org.eclipse.persistence.jpa</artifactId>
                    <version>${eclipselink.version}</version>
                </dependency>
            </dependencies>
        </plugin>
    </plugins>
</build>

This project is a client of the preceding eclipselink-entity project. It has a Main class which simply populates some records then fetches them.

public class Main {
    public static void main(String[] args) {
        EntityManagerFactory emf = null;
        try {
            emf = Persistence.createEntityManagerFactory("myPU");
            EntityManager em = null;

            // Populating data
            try {
                em = emf.createEntityManager();
                final EntityTransaction tx = em.getTransaction();
                tx.begin();

                Dept dept = new Dept();
                dept.setId(1l);
                dept.setDeptName("Engineering");
                dept.setEmployees(new ArrayList<>());
                em.persist(dept);

                Employee emp = new Employee();
                emp.setId(1l);
                emp.setFirstName("Jane");
                emp.setLastName("Doe");
                dept.getEmployees().add(emp);
                emp.setDept(dept);
                em.persist(emp);

                Phone phone = new Phone();
                phone.setPhoneNumber("000-1111-2222");
                phone.setEmployee(emp);
                emp.setPhone(phone);
                em.persist(phone);

                tx.commit();
            } finally { if (em != null) { em.close(); } }

            System.out.println("<<< Populating done >>>");

            try {
                em = emf.createEntityManager();
                final Employee emp = em.find(Employee.class, 1l);

                System.out.println(emp.getFirstName() + " " + emp.getLastName());

                // EAGER
                System.out.println(emp.getDept().getDeptName());
                // LAZY
                System.out.println(emp.getPhone().getPhoneNumber());
            } finally { if (em != null) { em.close(); } }
        } finally { if (emf != null) { emf.close(); } }
    }
}

Here you can see the Phone entity has lazily fetched while Dept entity was eagerly fetched:

<<< Populating done >>>
[EL Fine]: sql: 2015-10-24 03:18:23.389--ServerSession(1216590855)--Connection(1488298739)--Thread(Thread[main,5,main])--SELECT ID, FIRSTNAME, LASTNAME, DEPT_ID FROM EMPLOYEE WHERE (ID = ?)
	bind => [1]
[EL Fine]: sql: 2015-10-24 03:18:23.408--ServerSession(1216590855)--Connection(1488298739)--Thread(Thread[main,5,main])--SELECT ID, DEPTNAME FROM DEPT WHERE (ID = ?)
	bind => [1]
Jane Doe
Engineering
[EL Fine]: sql: 2015-10-24 03:18:23.413--ServerSession(1216590855)--Connection(1488298739)--Thread(Thread[main,5,main])--SELECT PHONENUMBER, EMPLOYEE_ID FROM PHONE WHERE (EMPLOYEE_ID = ?)
	bind => [1]
000-1111-2222

This example uses in-memory Apache Derby so you don’t need to set up any databases to execute this example. complete projects can be obtained from following GitHub repositories:
