Environment

Local

• VisualVM 1.7.0_51 (Build 1352-130117); platform 20130117-unknown-revn
• WildFly 8.0.0.Final
• Oracle JDK7u51
• OS X 10.9.2

Remote profiling target

• WildFly 8.0.0.Final
• Oracle JDK7u45
• OS X 10.9.1

Profiling local instances

• We don't need any special operation to profiling with local instances.

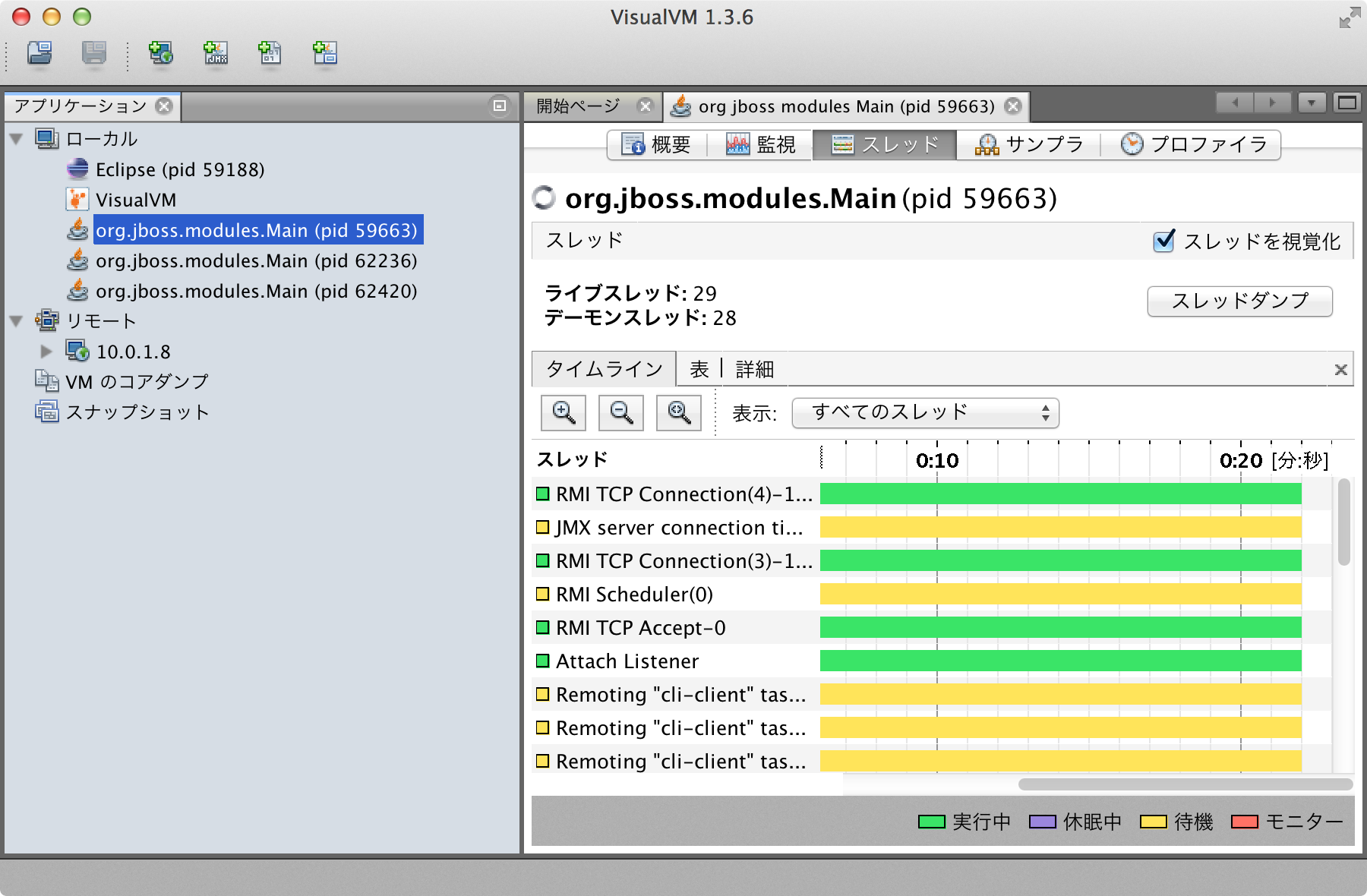

• After just launch VisualVM, we can see local instances.

Profiling Remote instances

Create a management user in the target instance

kyle-no-MacBook:bin kyle$ pwd
/Users/kyle/apps/wildfly-8.0.0.Final/bin
kyle-no-MacBook:bin kyle$ ./add-user.sh kyle ***
Picked up _JAVA_OPTIONS: -Dfile.encoding=UTF-8
Added user 'kyle' to file '/Users/kyle/apps/wildfly-8.0.0.Final/standalone/configuration/mgmt-users.properties'
Added user 'kyle' to file '/Users/kyle/apps/wildfly-8.0.0.Final/domain/configuration/mgmt-users.properties'
kyle-no-MacBook:bin kyle$

Define a system property in the target instance to accept connection from remote host

• CAUTION: this makes management port to accept connections from everyone.

/system-property=jboss.bind.address.management:add(value=0.0.0.0)

Launch VisualVM

• We have to specify an additional jar on startup option like this:

jvisualvm --cp:a /Users/kyle/apps/wildfly-8.0.0.Final/bin/client/jboss-cli-client.jar

• If it doesn't work, try “-cp:a” instead

Add and connect to target

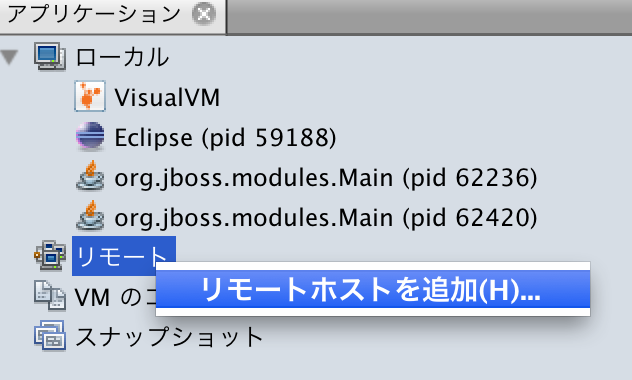

1. Right-click “Remote” - “Add a remote host”

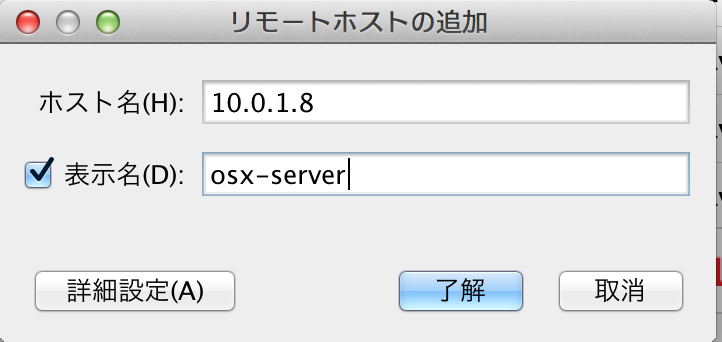

2. Enter hostname - OK

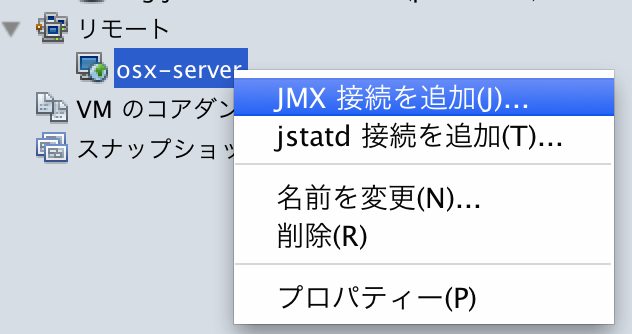

3. Right-click hostname - add a JMX connection

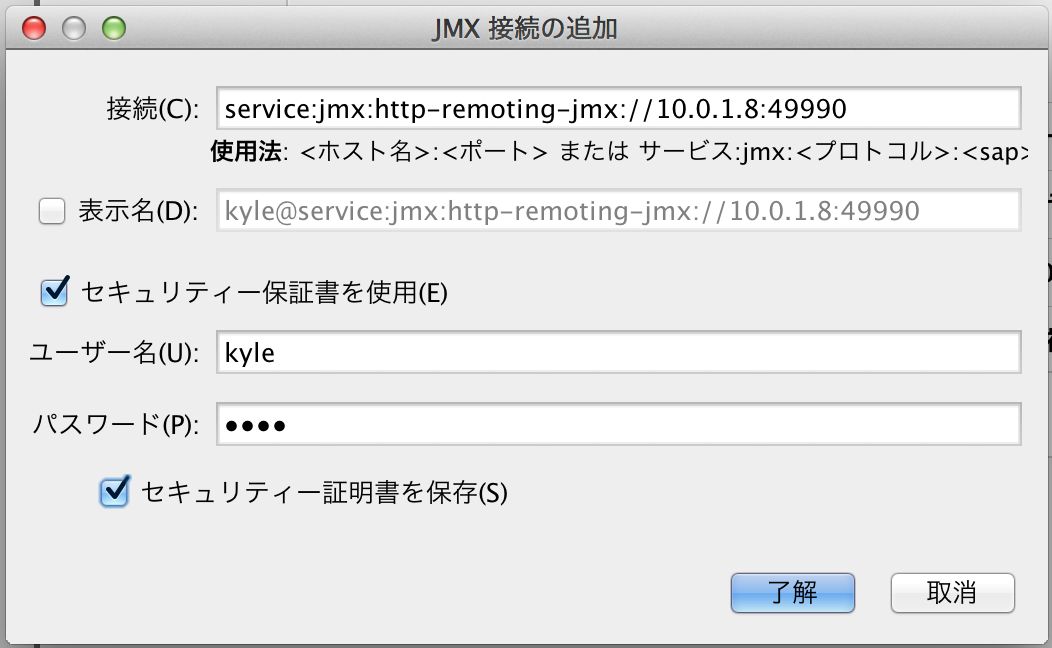

4. Enter connection url, username and password that created in above step - OK NOTICE: Usually, WildFly's management port is 9990. I customized it as 49990 for my environment.

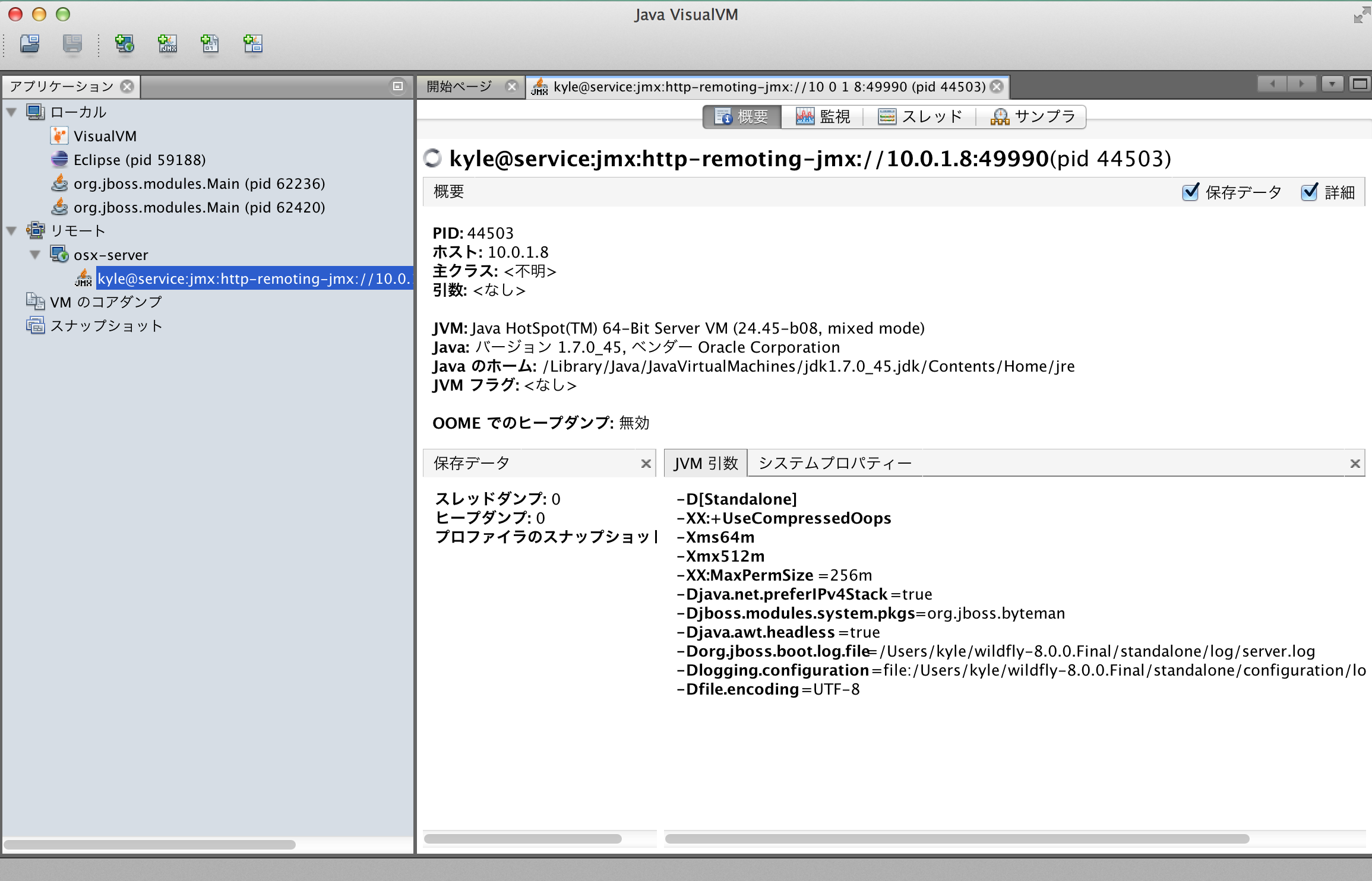

5. Double-click a icon which appeared with JMX icon. now we can do profiling with remote WildFly instance.

service:jmx:http-remoting-jmx://[HOSTNAME]:9990
