NativeQueryでSELECTしてみる


Posted on Saturday Jan 25, 2014 at 11:37PM in Technology


ここではNativeQueryを使うまでもない簡単な単独のエンティティをSELECTしてみます。複雑なのは後々。

環境

  • Hibernate 4.3.0.Final
  • WildFly8.0.0.CR1
  • Oracle JDK7u51
  • postgresql-9.3-1100.jdbc41.jar
  • PostgreSQL 9.2.4

前提条件

関連を持たない単独のエンティティをSELECTしてみる

エンティティクラス等を配置

配置図

図で選択されている資源を作る必要が有ります

Employee.java

package org.arquillian.example;

import java.io.Serializable;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

@Entity
public class Employee implements Serializable {

    private static final long serialVersionUID = 1L;
    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private Long id;
    @Column
    private String firstName;
    @Column
    private String lastName;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    @Override
    public String toString() {
        return "Employee [id=" + id + ", firstName=" + firstName + ", lastName=" + lastName + "]";
    }

}

orm.xml

<?xml version="1.0" encoding="UTF-8"?>
<entity-mappings version="2.1"
    xmlns="http://xmlns.jcp.org/xml/ns/persistence/orm" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/persistence/orm http://xmlns.jcp.org/xml/ns/persistence/orm_2_1.xsd">

    <named-native-query name="findEmployee" result-set-mapping="employeeResult">
        <query><![CDATA[
            SELECT
                emp.id,
                emp.firstName,
                emp.lastName
            FROM
                Employee AS emp
        ]]></query>
    </named-native-query>

    <sql-result-set-mapping name="employeeResult">
        <entity-result entity-class="org.arquillian.example.Employee"/>
    </sql-result-set-mapping>
</entity-mappings>

IndependentSelectTest.java

package org.arquillian.example;

import java.util.List;

import javax.persistence.EntityManager;
import javax.persistence.PersistenceContext;
import javax.transaction.Transactional;

import org.jboss.arquillian.container.test.api.Deployment;
import org.jboss.arquillian.junit.Arquillian;
import org.jboss.arquillian.persistence.UsingDataSet;
import org.jboss.shrinkwrap.api.Archive;
import org.jboss.shrinkwrap.api.ShrinkWrap;
import org.jboss.shrinkwrap.api.asset.EmptyAsset;
import org.jboss.shrinkwrap.api.spec.WebArchive;
import org.junit.Test;
import org.junit.runner.RunWith;

@RunWith(Arquillian.class)
public class IndependentSelectTest {
    @Deployment
    public static Archive<?> createDeployment() {
        Archive<?> a = ShrinkWrap.create(WebArchive.class, "test.war")
            .addPackage(Employee.class.getPackage())
            .addAsResource("test-persistence.xml", "META-INF/persistence.xml")
            .addAsResource("META-INF/orm.xml", "META-INF/orm.xml")
            .addAsWebInfResource(EmptyAsset.INSTANCE, "beans.xml")
            .addAsWebInfResource("jbossas-ds.xml");
        return a;
    }

    @PersistenceContext
    EntityManager em;

    @Test
    @Transactional
    @UsingDataSet("datasets/independentSelect/employees.yml")
    public void select() throws Exception {
        dumpEntityList(em.createNamedQuery("findEmployee", Employee.class).getResultList());
    }

    protected void dumpEntityList(List<?> list){
        for(Object o : list){
            System.out.println(o + ", contains=" + em.contains(o));
        }
    }
}

employees.yml

employee:
  - id: -1
    firstname: Taro
    lastname: Yamada
  - id: -2
    firstname: Jiro
    lastname: Suzuki
  - id: -3
    firstname: Saburo
    lastname: Tanaka

jbossas-ds.xml

ローカルで動いているPostgreSQLにjpapracというDBを作っておきます

<?xml version="1.0" encoding="UTF-8"?>
<datasources xmlns="http://www.jboss.org/ironjacamar/schema"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="
        http://www.jboss.org/ironjacamar/schema
        http://docs.jboss.org/ironjacamar/schema/datasources_1_0.xsd">
    <datasource enabled="true" jndi-name="jdbc/arquillian" pool-name="ArquillianPostgresPool">
        <connection-url>jdbc:postgresql://localhost:5432/jpaprac</connection-url>
        <driver>postgresql-9.3-1100.jdbc41.jar</driver>
        <security>
            <user-name>postgres</user-name>
            <password>***</password>
        </security>
    </datasource>
</datasources>

test-persistence.xml

<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.1"
    xmlns="http://xmlns.jcp.org/xml/ns/persistence" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/persistence http://xmlns.jcp.org/xml/ns/persistence/persistence_2_1.xsd">
    <persistence-unit name="test">
        <jta-data-source>jdbc/arquillian</jta-data-source>
        <properties>
            <property name="hibernate.hbm2ddl.auto" value="update" />
            <property name="hibernate.show_sql" value="true" />
        </properties>
    </persistence-unit>
</persistence>

実行結果

コンソールの出力を関係ありそうなところだけ抜粋

10:23:35,245 INFO  [stdout] (pool-2-thread-12) Hibernate: SELECT emp.id, emp.firstName, emp.lastName FROM Employee AS emp
10:23:35,248 INFO  [stdout] (pool-2-thread-12) Employee [id=-1, firstName=Taro, lastName=Yamada], contains=true
10:23:35,248 INFO  [stdout] (pool-2-thread-12) Employee [id=-2, firstName=Jiro, lastName=Suzuki], contains=true
10:23:35,248 INFO  [stdout] (pool-2-thread-12) Employee [id=-3, firstName=Saburo, lastName=Tanaka], contains=true

普通に出てますね。NamedNativeQueryにしてResultSetMappingまで定義するとManagedになる。

備考

@UsingDataSetアノテーションをテストメソッドに付けると、Arquillian Persistence Extensionがデータ投入してくれますが、投入したデータはテスト後にTRUNCATEされてしまうので、テスト後にテーブルで確認しようとしても見えないようです[3]。これを抑制する設定は現状存在しないらしい。まあデバッガか何かで止めれば見られるだろうけど。

arquillian.xmlにこういう内容を書けばTRUNCATEがテスト実行前に走るようになるので、テスト実行後のデータを簡単に確認できます

<?xml version="1.0" encoding="UTF-8"?>
<arquillian xmlns="http://jboss.org/schema/arquillian"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="
        http://jboss.org/schema/arquillian
        http://jboss.org/schema/arquillian/arquillian_1_0.xsd">
    <extension qualifier="persistence">
        <property name="defaultCleanupPhase">BEFORE</property>
    </extension>
</arquillian>

HibernateのSQLログは、persistence.xmlのproperties要素内に以下のようなのを追記すると複数行使って見やすくインデントとかしてくれる

<property name="hibernate.format_sql" value="true"/>

続き

NativeQueryで関連持ちエンティティをSELECTしてみる

参考文献

  1. Hibernate - orm.xml - night, night, plane, plane, utf-8, utf-8
  2. Single Table ResultSet Mapping : ResultSet Mapping « JPA « Java Tutorial
  3. Table truncate after @UsingDataSet | Community
  4. Pro JPA 2


ArquillianのテストをリモートのWildFly内でデバッグしてみる


Posted on Saturday Jan 25, 2014 at 10:37PM in Technology


ArquillianをWildFly8.0.0.CR1で動かしてみるの続きです。テストクラスのデバッグをしてみます

ArquillianのRemoteでも普通のクラス同様にデバッグできます[1]。今回のようなケースではEdit Source Lookup Pathをやらないといけないのでその手順を残しておきます

環境

  • wildfly-arquillian-container-remote 8.0.0.CR1
  • Arquillian 1.1.2.Final
  • WildFly 8.0.0.CR1
  • Eclipse Kepler SR1
  • Oracle JDK7u51

前提条件

やってみる

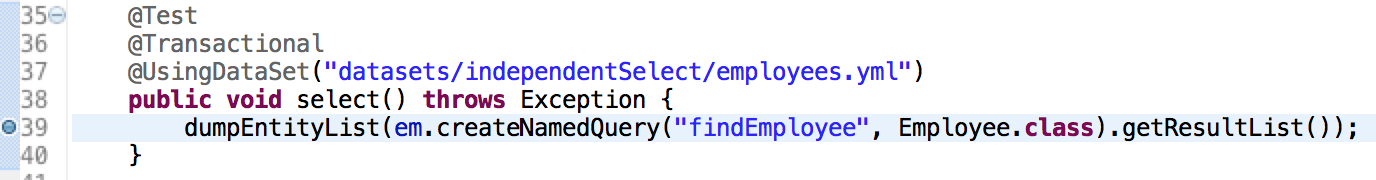

  1. 資源は前述の前提条件の記事で書いたのと全く同じ状態で、テストクラスの39行目にブレークポイントを設定します

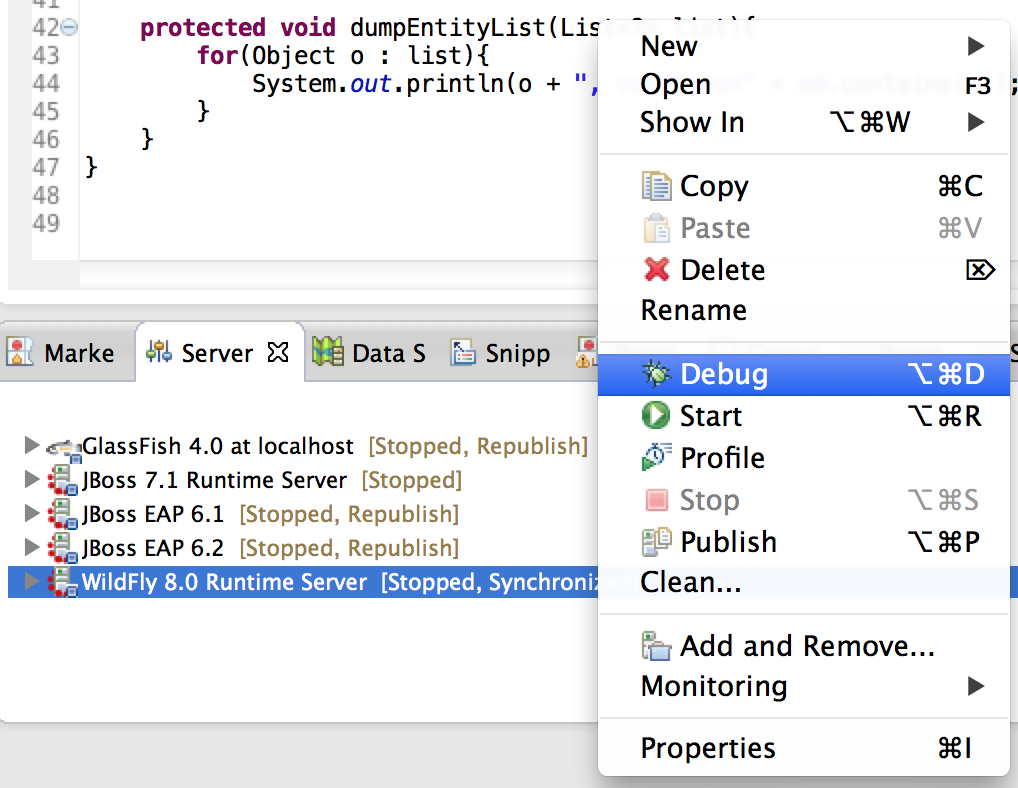

  2. WildFlyをDebugで起動します

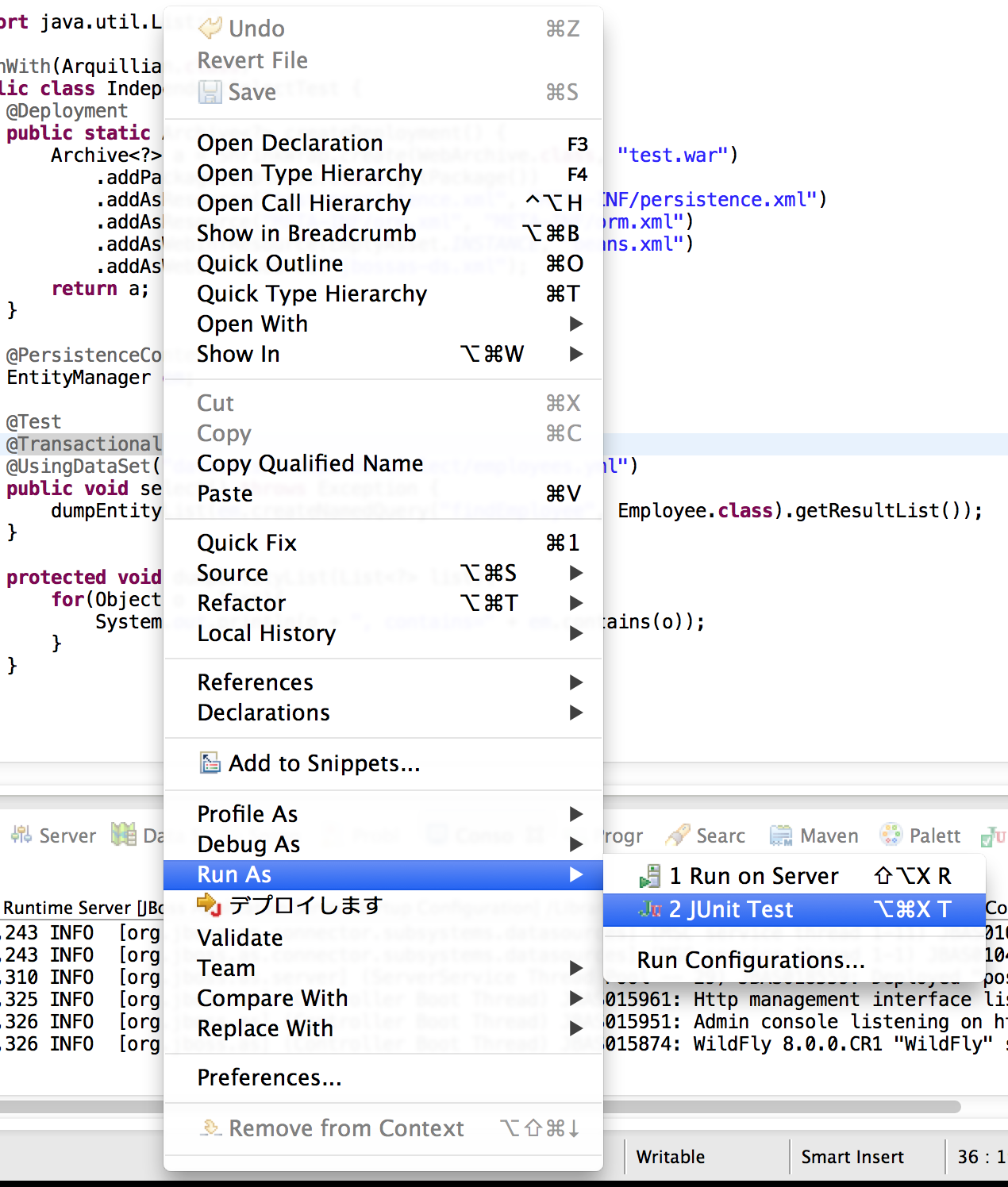

  3. 右クリック→Run As→JUnit Test。基本的にはこの手順で普通にブレークポイントで止まってデバッグ出来るはず。この手順より後はソースがデバッガに認識されない場合の設定手順です

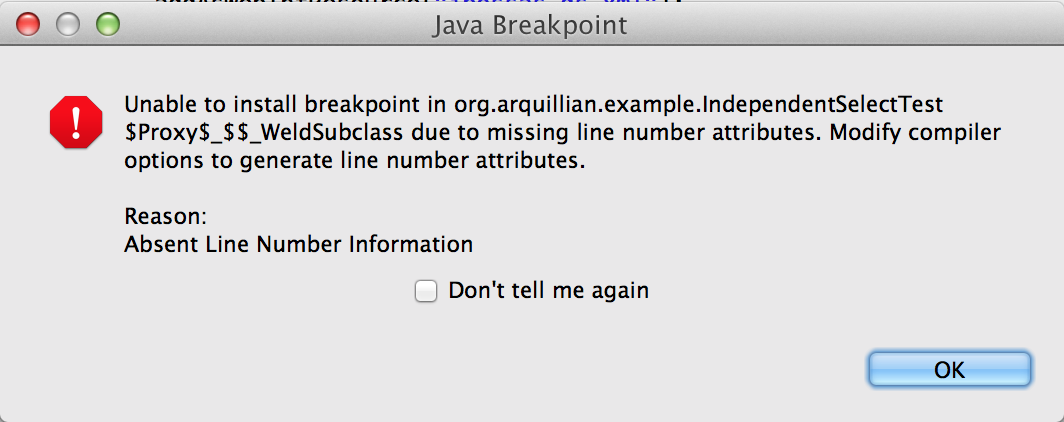

  4. OK。コンパイラオプションどうのこうの言ってるけど、これONになってても出るし

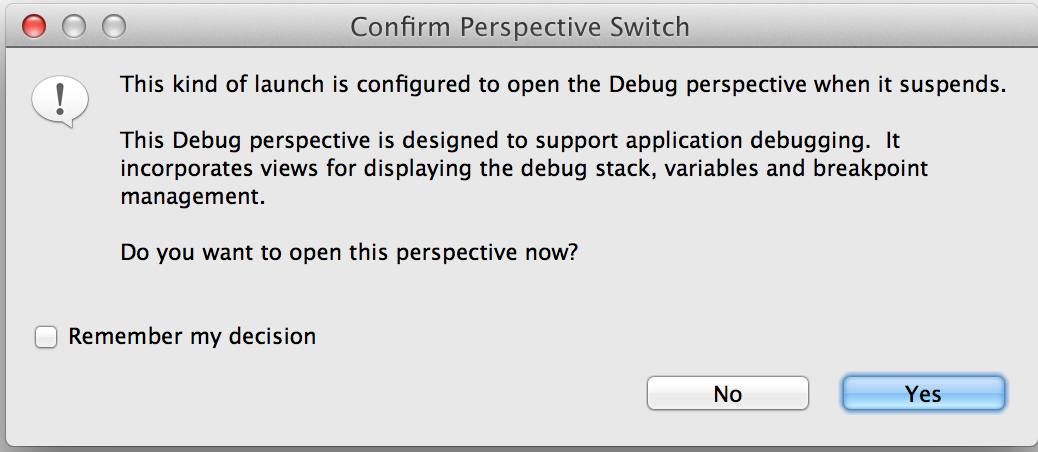

  5. Yes

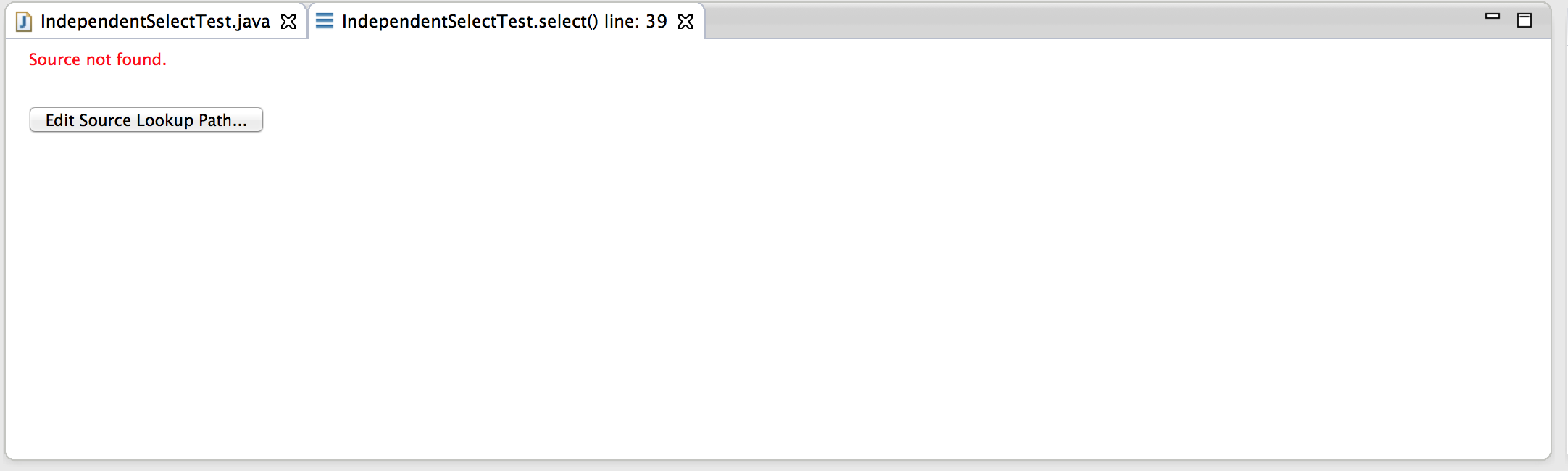

  6. Debugパースペクティブに切り替わる。Source not foundと出たら、画面中ほどのEdit Source Lookup Pathをクリック

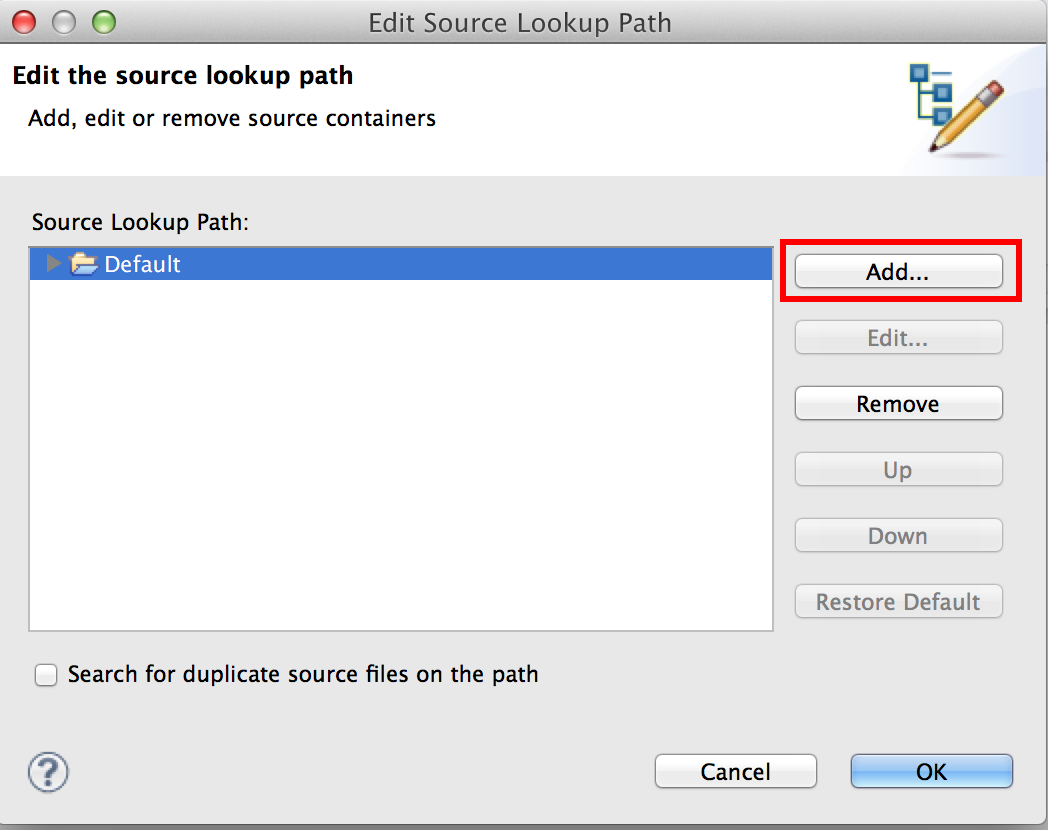

  7. Addをクリック

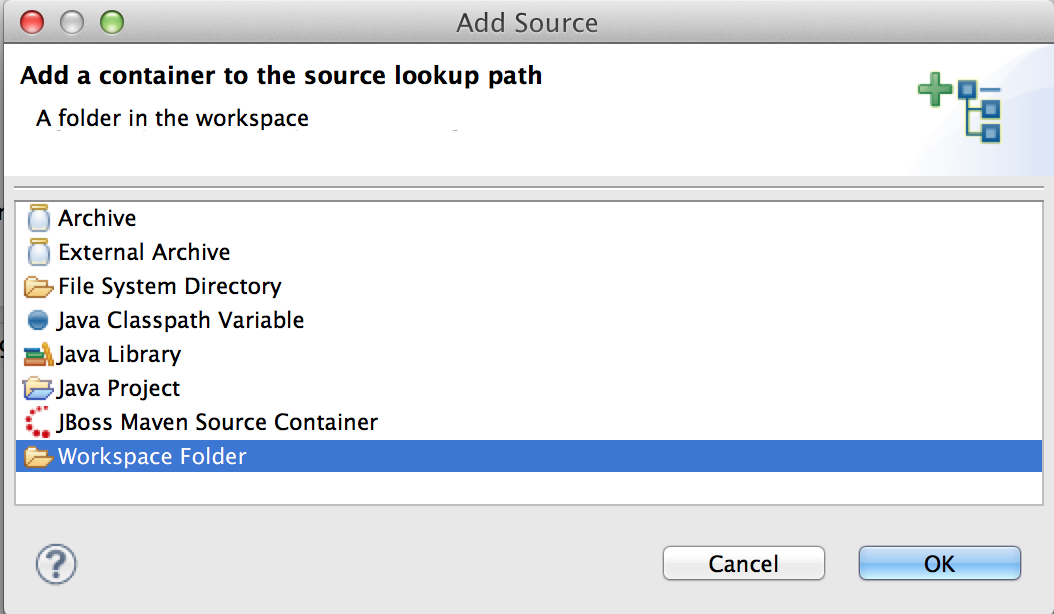

  8. Workspace Folderを選択してOK

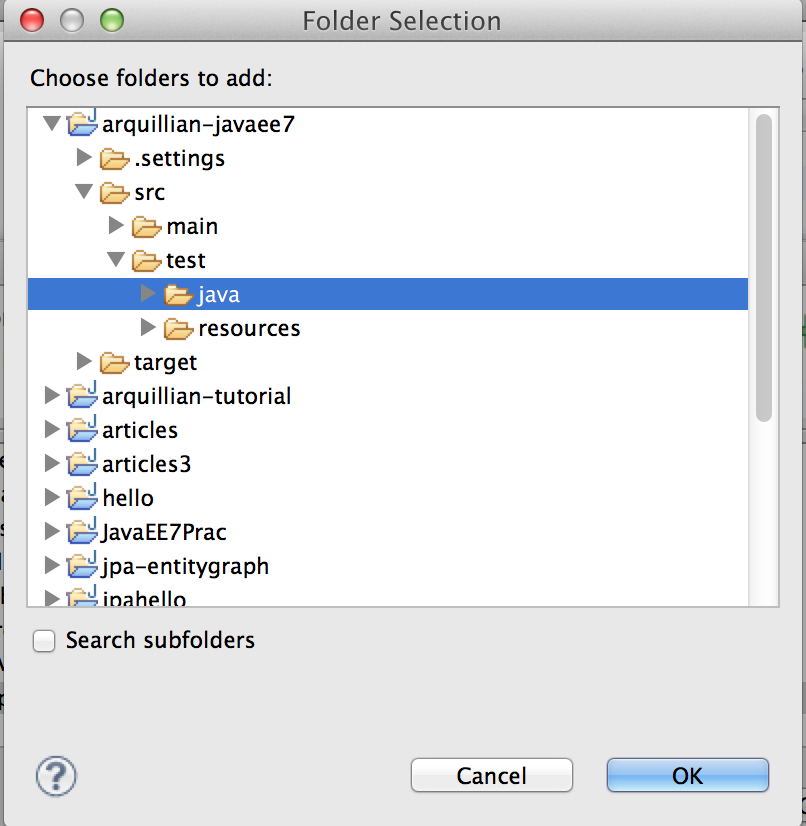

  9. 作業中のプロジェクトのsrc/test/javaを選択してOK

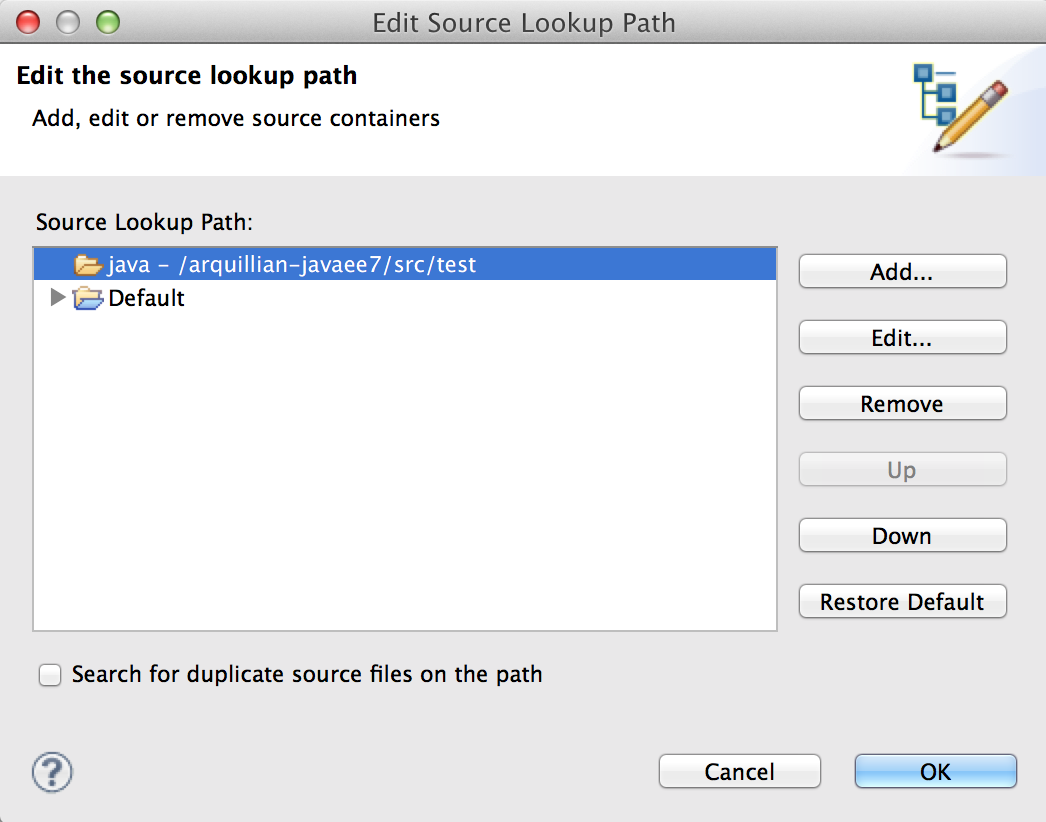

  10. 追加されたのを確認してOK

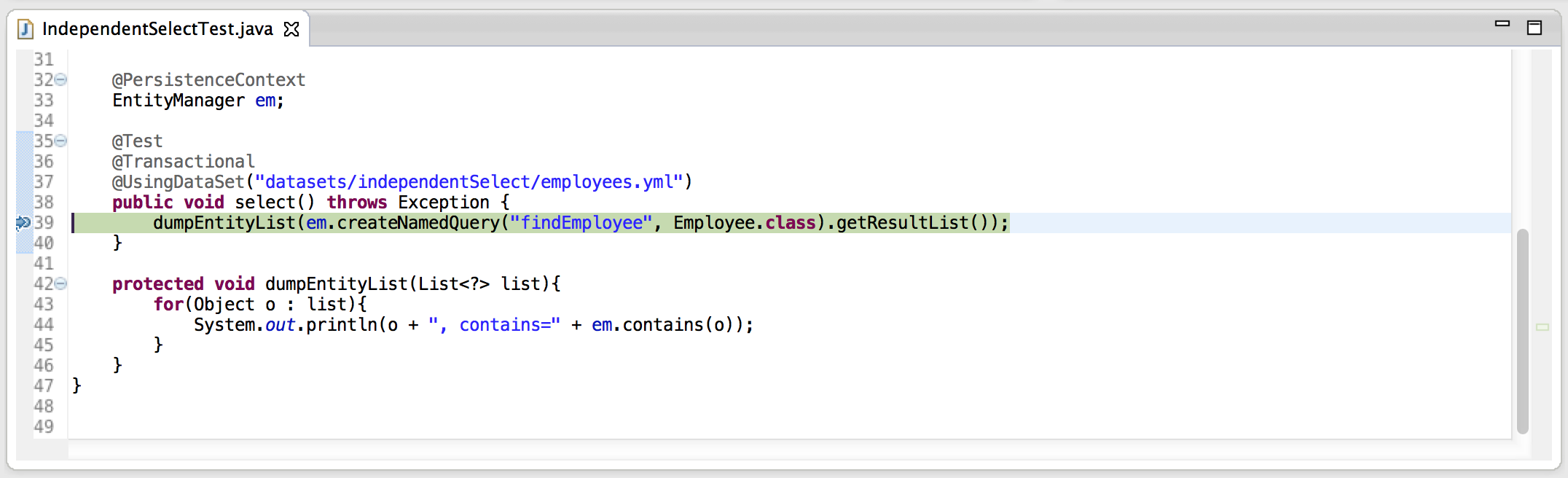

  11. ソースと止まってるところが表示されるのを確認

  12. いったんResume(F8)でデバッガを終わらせる

  13. この作業をしている間にデバッガが勝手に終了していたら、投入されたまま放ったらかされているテストデータの掃除などをしておく

  14. 3の手順で再度テストを実行

参考文献

  1. Getting Started: Rinse and Repeat · Arquillian Guides


JavaEE7プロジェクトでArquillianを使ってみる


Posted on Saturday Jan 25, 2014 at 09:23PM in Technology


チュートリアルはJavaEE6ベースで書かれていたが、実際にはJavaEE7で作業したいのでJavaEE7で環境を作る方法

本当はArchetypeを作りたいのだが、まだMavenもEclipseも良くわかっていないのでまた後日

環境

  • WildFly8.0.0.CR1
  • Oracle JDK7u51

手順

  1. WildFly8.0.0CR1でサーブレットを動かしてみるの要領でjavaee7-essentials-archetypeでプロジェクトを作る
  2. java build pathを開き、test用のフォルダが欠けていたりする(test/resourcesとtest/java)のでそれらを作ってRefresh。test用のフォルダはOutput folderをtarget/test-classesに変更する。resourcesフォルダを作ったらExcludedを「**」にする
  3. プロジェクトの設定のdeployment assemblyを開いてテスト用の資源がデプロイされないようにする。test/resourcesがあれば削除
  4. java build pathのorder and exportで並び順を変更
  5. pom.xmlを編集する

pom.xml

こういう感じに改変してやれば良さげ。Arquillian Persistenceも入れておく

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>arquillian-javaee7</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
        <failOnMissingWebXml>false</failOnMissingWebXml>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.jboss.arquillian</groupId>
                <artifactId>arquillian-bom</artifactId>
                <version>1.1.2.Final</version>
                <scope>import</scope>
                <type>pom</type>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.3.2</version>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.12</version>
            </plugin>
        </plugins>
    </build>

    <dependencies>
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-all</artifactId>
            <version>1.9.5</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.hamcrest</groupId>
            <artifactId>hamcrest-integration</artifactId>
            <version>1.2.1</version>
        </dependency>
        <dependency>
            <groupId>net.avh4.util</groupId>
            <artifactId>imagecomparison</artifactId>
            <version>0.0.2</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.jboss.arquillian.junit</groupId>
            <artifactId>arquillian-junit-container</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.wildfly</groupId>
            <artifactId>wildfly-arquillian-container-remote</artifactId>
            <version>8.0.0.CR1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.jboss.arquillian.extension</groupId>
            <artifactId>arquillian-persistence-impl</artifactId>
            <version>1.0.0.Alpha6</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

こういう感じのテストが走るようになる

[1]にあったサンプルを少し改変したもの。test-persistence.xmlやjbossas-ds.xmlはArquillianチュートリアルのJPAを使ったテストを走らせるところをやってみるのと同じ。

package org.arquillian.example;

import javax.persistence.EntityManager;
import javax.persistence.PersistenceContext;

import org.jboss.arquillian.container.test.api.Deployment;
import org.jboss.arquillian.junit.Arquillian;
import org.jboss.arquillian.persistence.ShouldMatchDataSet;
import org.jboss.arquillian.persistence.UsingDataSet;
import org.jboss.shrinkwrap.api.Archive;
import org.jboss.shrinkwrap.api.ShrinkWrap;
import org.jboss.shrinkwrap.api.asset.EmptyAsset;
import org.jboss.shrinkwrap.api.spec.WebArchive;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;

@RunWith(Arquillian.class)
public class UserPersistenceTest {

    @Deployment
    public static Archive<?> createDeploymentPackage() {
        return ShrinkWrap.create(WebArchive.class, "test.war")
                .addPackage(UserAccount.class.getPackage())
                .addAsResource("test-persistence.xml", "META-INF/persistence.xml")
                .addAsWebInfResource(EmptyAsset.INSTANCE, "beans.xml")
                .addAsWebInfResource("jbossas-ds.xml");
    }

    @PersistenceContext
    EntityManager em;

    @Test
    @UsingDataSet("datasets/users.yml")
    @ShouldMatchDataSet("datasets/expected-users.yml")
    public void should_change_user_password() throws Exception {
        // given
        String expectedPassword = "LexLuthor";
        UserAccount user = em.find(UserAccount.class, 2L);

        // when
        user.setPassword("LexLuthor");
        user = em.merge(user);

        // then
        Assert.assertEquals(expectedPassword, user.getPassword());
    }
}

テストを走らせると、log4jの設定が無い、slf4jの実装が無い、と怒られるのでそれは適宜対応。

参考文献

  1. Persistence - Arquillian - Project Documentation Editor


jboss-cliからいろいろ設定したりしてみる


Posted on Saturday Jan 25, 2014 at 08:01PM in Technology


jboss-cliを使っていろいろ設定する方法のメモです

環境

  • WildFly 8.0.0.CR1

ロガー

ここに書きました: ロガーを設定してみる

データソース

ここに書きました: CLIでデータソースを定義する

データソースの一覧を見る

ls /subsystem=datasources/data-source

JNDI

ここにも書きました: ProjectStageをJNDIで設定する

一覧表示

ls /subsystem=naming/binding

java:/env/jsf/ProjectStage=Developmentを設定する

/subsystem=naming/binding=java\:\/env\/jsf\/ProjectStage/:add(binding-type=simple,value=Development,class=java.lang.String)

java:/env/jsf/ProjectStageの設定内容を確認する

ls /subsystem=naming/binding=java\:\/env\/jsf\/ProjectStage

java:/env/jsf/ProjectStageの値をUnitTestに変更する

/subsystem=naming/binding=java\:\/env\/jsf\/ProjectStage/:write-attribute(name=value,value=UnitTest)

システムプロパティ

一覧表示

ls /system-property

file.encoding=UTF-8を設定する

/system-property=file.encoding:add(value=UTF-8)

file.encodingの設定内容を確認する

/system-property=file.encoding:read-resource

file.encodingを削除する

/system-property=file.encoding:remove

参考文献

  1. CLI Recipes - JBoss AS 7.1 - Project Documentation Editor


ArquillianをWildFly8.0.0.CR1で動かしてみる


Posted on Saturday Jan 25, 2014 at 05:20PM in Technology


ArquillianチュートリアルのJPAを使ったテストを走らせるところをやってみるの続きです。WildFly8.0.0.CR1に対してremoteモードでArquillianのテストを走らせてみます。

環境

  • WildFly 8.0.0.CR1
  • Eclipse Kepler SR1
  • Apache Maven 2.2.1 (r801777; 2009-08-07 04:16:01+0900)
  • Oracle JDK7u51
  • OS X 10.9.1

準備

pom.xmlの編集

[1]に書かれたdependency要素を使ってpom.xmlに新しいprofile要素を定義します。こうなる

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.arquillian.example</groupId>
    <artifactId>arquillian-tutorial</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>arquillian-tutorial</name>
    <url>http://maven.apache.org</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.jboss.arquillian</groupId>
                <artifactId>arquillian-bom</artifactId>
                <version>1.1.2.Final</version>
                <scope>import</scope>
                <type>pom</type>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.3.2</version>
                <configuration>
                    <source>1.6</source>
                    <target>1.6</target>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>2.12</version>
            </plugin>
        </plugins>
    </build>
    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.8.1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mockito</groupId>
            <artifactId>mockito-all</artifactId>
            <version>1.8.5</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.hamcrest</groupId>
            <artifactId>hamcrest-integration</artifactId>
            <version>1.2.1</version>
        </dependency>
        <dependency>
            <groupId>net.avh4.util</groupId>
            <artifactId>imagecomparison</artifactId>
            <version>0.0.2</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.jboss.arquillian.junit</groupId>
            <artifactId>arquillian-junit-container</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <!-- clip -->
    <profiles>
        <profile>
            <id>arquillian-weld-ee-embedded</id>
            <dependencies>
                <dependency>
                    <groupId>org.jboss.spec</groupId>
                    <artifactId>jboss-javaee-6.0</artifactId>
                    <version>1.0.0.Final</version>
                    <type>pom</type>
                    <scope>provided</scope>
                </dependency>
                <dependency>
                    <groupId>org.jboss.arquillian.container</groupId>
                    <artifactId>arquillian-weld-ee-embedded-1.1</artifactId>
                    <version>1.0.0.CR3</version>
                    <scope>test</scope>
                </dependency>
                <dependency>
                    <groupId>org.jboss.weld</groupId>
                    <artifactId>weld-core</artifactId>
                    <version>1.1.5.Final</version>
                    <scope>test</scope>
                </dependency>
                <dependency>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-simple</artifactId>
                    <version>1.6.4</version>
                    <scope>test</scope>
                </dependency>
            </dependencies>
        </profile>
        <!-- clip -->
        <profile>
            <id>arquillian-glassfish-embedded</id>
            <dependencies>
                <dependency>
                    <groupId>org.jboss.arquillian.container</groupId>
                    <artifactId>arquillian-glassfish-embedded-3.1</artifactId>
                    <version>1.0.0.CR2</version>
                    <scope>test</scope>
                </dependency>
                <dependency>
                    <groupId>org.glassfish.main.extras</groupId>
                    <artifactId>glassfish-embedded-all</artifactId>
                    <version>3.1.2</version>
                    <scope>provided</scope>
                </dependency>
            </dependencies>
        </profile>
        <!-- clip -->
        <!-- clip -->
        <profile>
            <id>arquillian-jbossas-managed</id>
            <dependencies>
                <dependency>
                    <groupId>org.jboss.spec</groupId>
                    <artifactId>jboss-javaee-6.0</artifactId>
                    <version>1.0.0.Final</version>
                    <type>pom</type>
                    <scope>provided</scope>
                </dependency>
                <dependency>
                    <groupId>org.jboss.as</groupId>
                    <artifactId>jboss-as-arquillian-container-managed</artifactId>
                    <version>7.1.1.Final</version>
                    <scope>test</scope>
                </dependency>
                <dependency>
                    <groupId>org.jboss.arquillian.protocol</groupId>
                    <artifactId>arquillian-protocol-servlet</artifactId>
                    <scope>test</scope>
                </dependency>
            </dependencies>
        </profile>
        <!-- clip -->
        <!-- clip -->
        <profile>
            <id>arquillian-jbossas-remote</id>
            <dependencies>
                <dependency>
                    <groupId>org.jboss.spec</groupId>
                    <artifactId>jboss-javaee-6.0</artifactId>
                    <version>1.0.0.Final</version>
                    <type>pom</type>
                    <scope>provided</scope>
                </dependency>
                <dependency>
                    <groupId>org.jboss.as</groupId>
                    <artifactId>jboss-as-arquillian-container-remote</artifactId>
                    <version>7.1.1.Final</version>
                    <scope>test</scope>
                </dependency>
            </dependencies>
        </profile>
        <!-- clip -->
        <!-- wildfly start -->
        <profile>
            <id>arquillian-wildfly-remote</id>
            <dependencies>
                <dependency>
                    <groupId>org.jboss.spec</groupId>
                    <artifactId>jboss-javaee-6.0</artifactId>
                    <version>1.0.0.Final</version>
                    <type>pom</type>
                    <scope>provided</scope>
                </dependency>
                <dependency>
                    <groupId>org.wildfly</groupId>
                    <artifactId>wildfly-arquillian-container-remote</artifactId>
                    <version>8.0.0.CR1</version>
                    <scope>test</scope>
                </dependency>
            </dependencies>
        </profile>
        <!-- wildfly end -->
    </profiles>
    <!-- clip -->
</project>

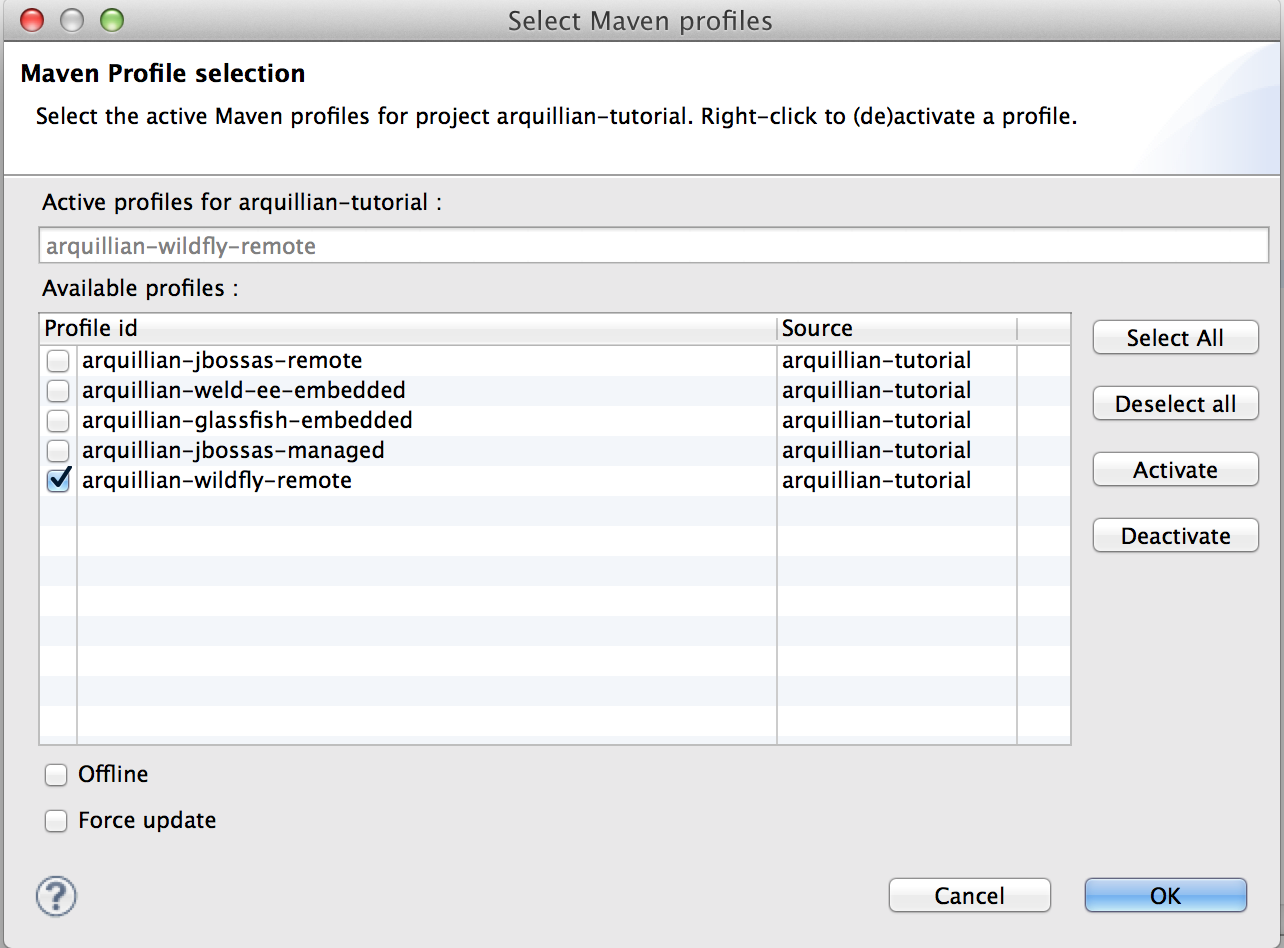

Profileの選択を変更

arquillian-wildfly-remoteだけチェックされた状態にしてOK

JVMの設定を変更

このままテストを走らせようとするとUnsupportedClassVersionErrorが出てしまいます。Arquillianを走らせるJREが1.6でWildFlyは1.7なのが原因っぽいのでプロジェクト側のJREを変更します。

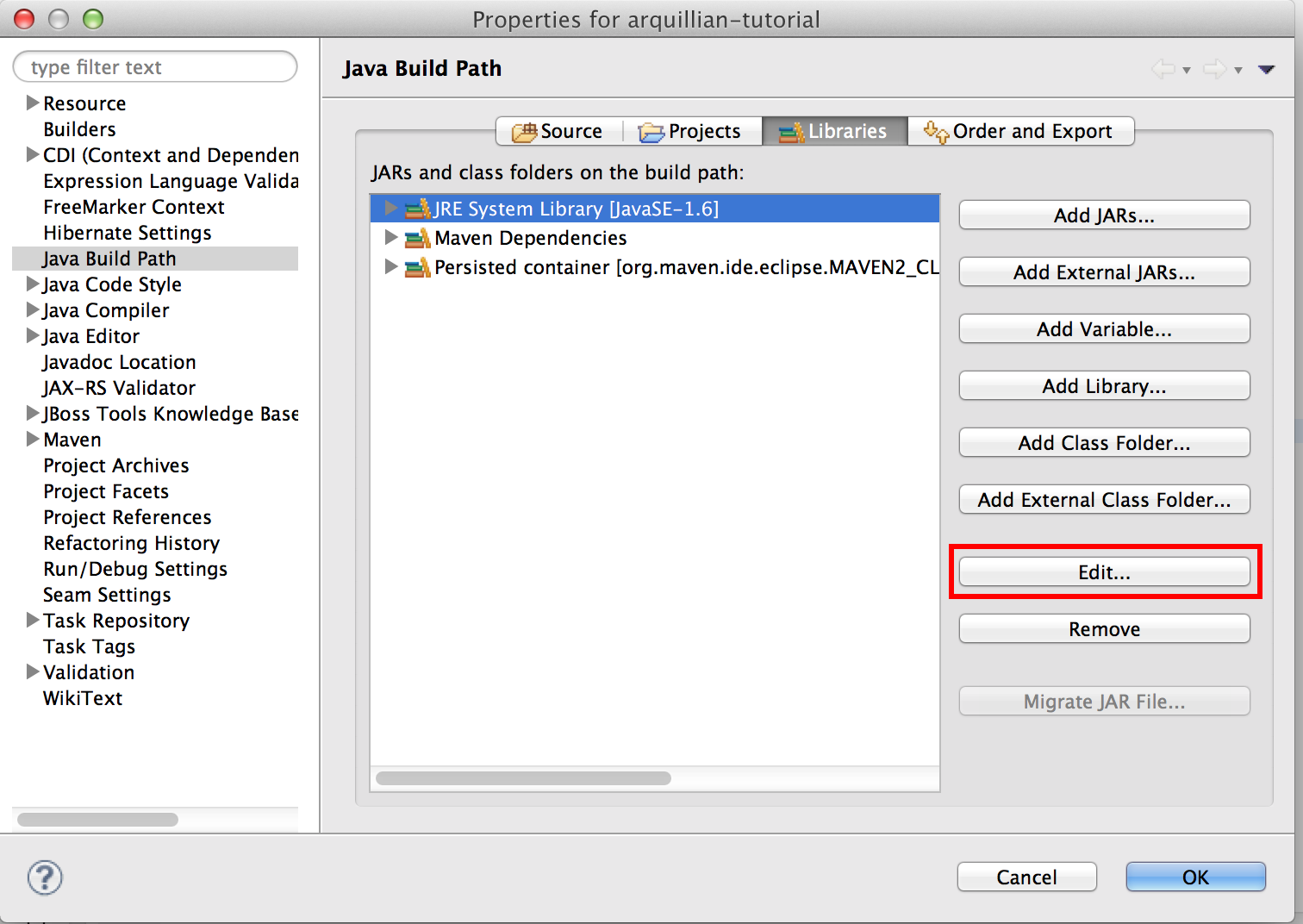

  1. プロジェクトの設定→Java Build Path→Librariesを開く

  2. JRE System Library [JavaSE-1.6] を選択してEditを選択

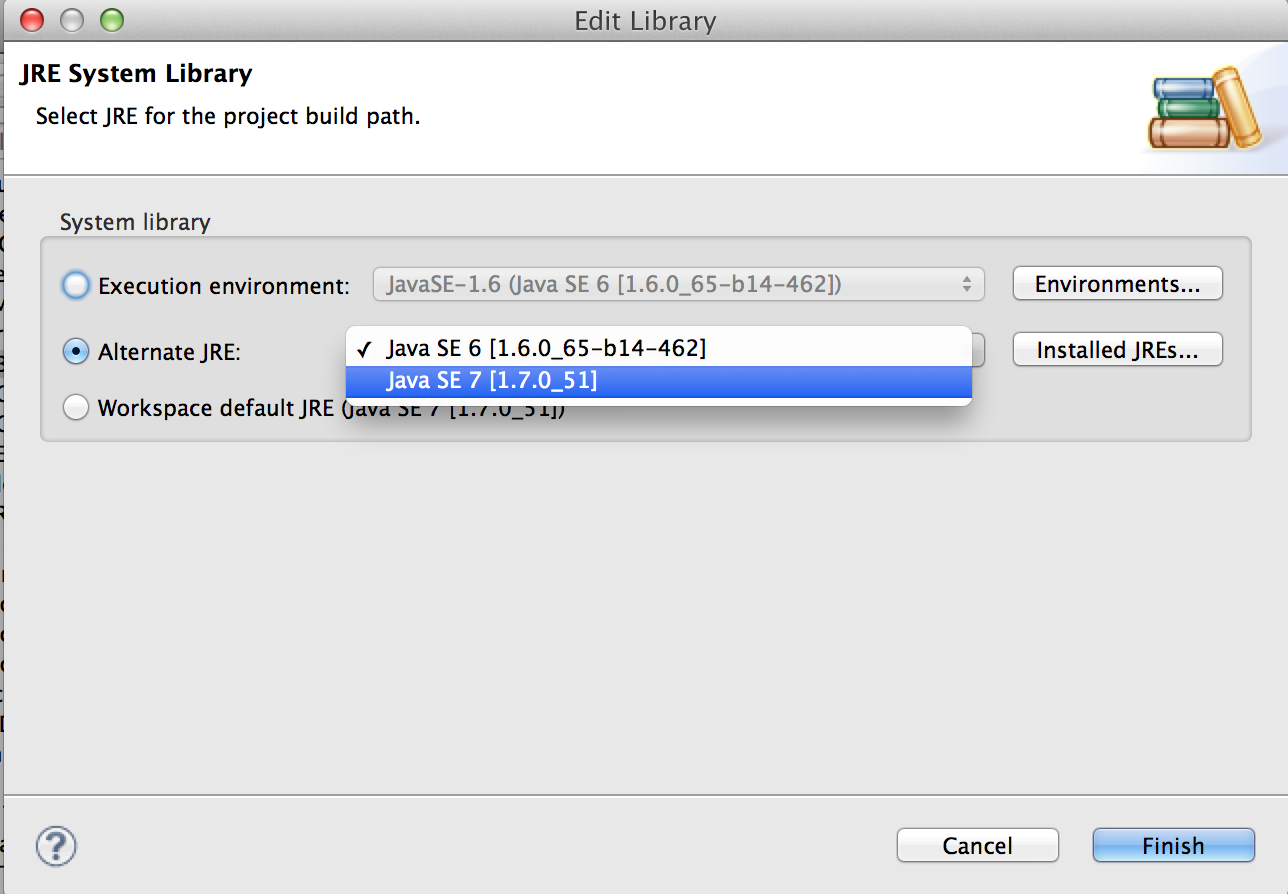

  3. ラジオボタンをAlternate JREに合わせてドロップダウンリストからJava SE 7を選択してOK

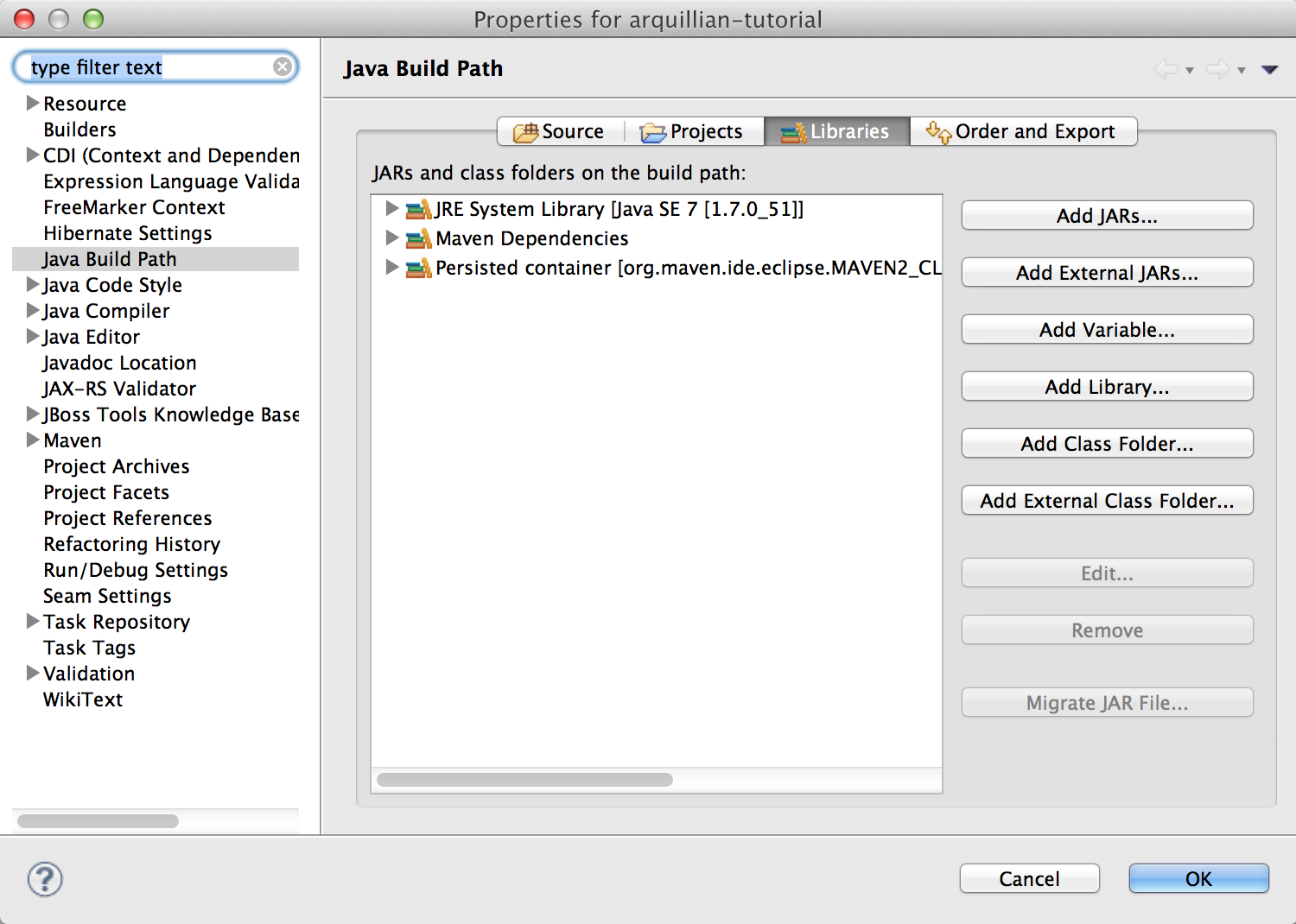

  4. JRE System Library [Java SE 7] に変わっているのを確認してOK

テストを走らせる

WildFly8を起動して前回と同じやり方で走らせてみます

GreeterTest (JPA使ってない方)

WARNレベルのメッセージが若干出てますが普通に走ります

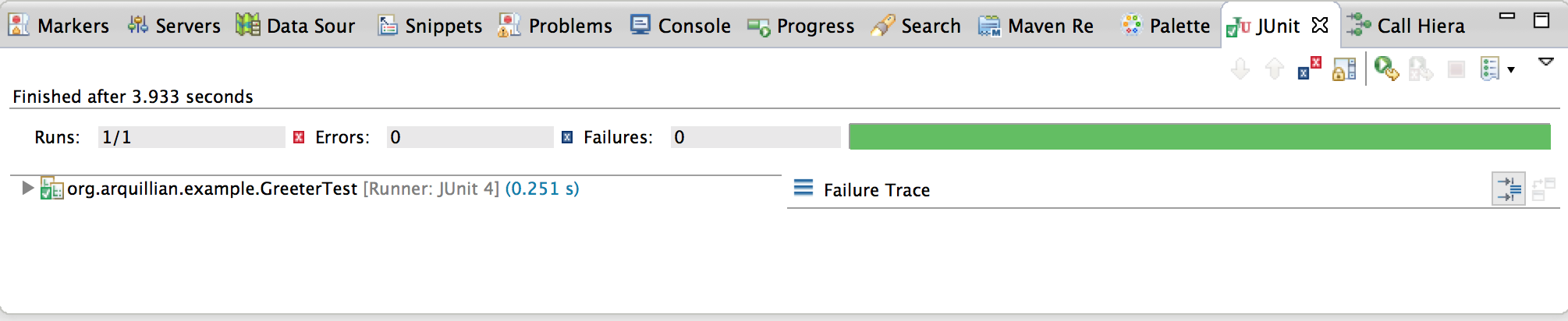

JUnit窓

ログ

17:41:30,906 INFO  [org.jboss.as.repository] (management-handler-thread - 5) JBAS014900: Content added at location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/be/e45d12928bf1ee6b6f2f2206e4995f7b80ca61/content
17:41:30,909 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-11) JBAS015876: Starting deployment of "arquillian-service" (runtime-name: "arquillian-service")
17:41:31,005 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-2) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.as.jmx:main") which may be changed or removed in future versions without notice.
17:41:31,005 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-2) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.as.server:main") which may be changed or removed in future versions without notice.
17:41:31,006 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-2) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.jandex:main") which may be changed or removed in future versions without notice.
17:41:31,006 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-2) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.wildfly.security.manager:main") which may be changed or removed in future versions without notice.
17:41:31,011 WARN  [org.jboss.weld.deployer] (MSC service thread 1-4) JBAS016012: Deployment deployment "arquillian-service" contains CDI annotations but no bean archive was not found. (No beans.xml nor class with bean defining annotations)
17:41:31,040 INFO  [org.jboss.as.server] (management-handler-thread - 5) JBAS018559: Deployed "arquillian-service" (runtime-name : "arquillian-service")
17:41:32,924 INFO  [org.jboss.as.repository] (management-handler-thread - 5) JBAS014900: Content added at location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/ea/a3ef36deeeb6b7c9f983ca3a59bf1b078e3a7c/content
17:41:32,927 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-16) JBAS015876: Starting deployment of "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar" (runtime-name: "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar")
17:41:32,940 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-14) JBAS018567: Deployment "deployment.f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar" is using a private module ("org.wildfly.security.manager:main") which may be changed or removed in future versions without notice.
17:41:32,941 INFO  [org.jboss.weld.deployer] (MSC service thread 1-14) JBAS016002: Processing weld deployment f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar
17:41:32,946 INFO  [org.jboss.weld.deployer] (MSC service thread 1-12) JBAS016005: Starting Services for CDI deployment: f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar
17:41:32,950 INFO  [org.jboss.weld.deployer] (MSC service thread 1-7) JBAS016008: Starting weld service for deployment f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar
17:41:32,950 INFO  [org.jboss.as.arquillian] (MSC service thread 1-12) Arquillian deployment detected: ArquillianConfig[service=jboss.arquillian.config."f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar",unit=f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar,tests=[org.arquillian.example.GreeterTest]]
17:41:33,062 INFO  [org.jboss.as.server] (management-handler-thread - 5) JBAS018559: Deployed "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar" (runtime-name : "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar")
17:41:33,238 INFO  [stdout] (pool-2-thread-2) Hello, Earthling!
17:41:33,298 INFO  [org.jboss.weld.deployer] (MSC service thread 1-14) JBAS016009: Stopping weld service for deployment f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar
17:41:33,310 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-9) JBAS015877: Stopped deployment f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar (runtime-name: f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar) in 19ms
17:41:33,322 INFO  [org.jboss.as.repository] (management-handler-thread - 7) JBAS014901: Content removed from location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/ea/a3ef36deeeb6b7c9f983ca3a59bf1b078e3a7c/content
17:41:33,322 INFO  [org.jboss.as.server] (management-handler-thread - 7) JBAS018558: Undeployed "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar" (runtime-name: "f4da79a4-4a77-4468-9fce-679cc1f8aa95.jar")
17:41:33,340 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-6) JBAS015877: Stopped deployment arquillian-service (runtime-name: arquillian-service) in 5ms
17:41:33,350 INFO  [org.jboss.as.repository] (management-handler-thread - 8) JBAS014901: Content removed from location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/be/e45d12928bf1ee6b6f2f2206e4995f7b80ca61/content
17:41:33,350 INFO  [org.jboss.as.server] (management-handler-thread - 8) JBAS018558: Undeployed "arquillian-service" (runtime-name: "arquillian-service")

GamePersistenceTest (JPA使っている方)

こちらもWARNレベルのメッセージが若干出てますが普通に走ります

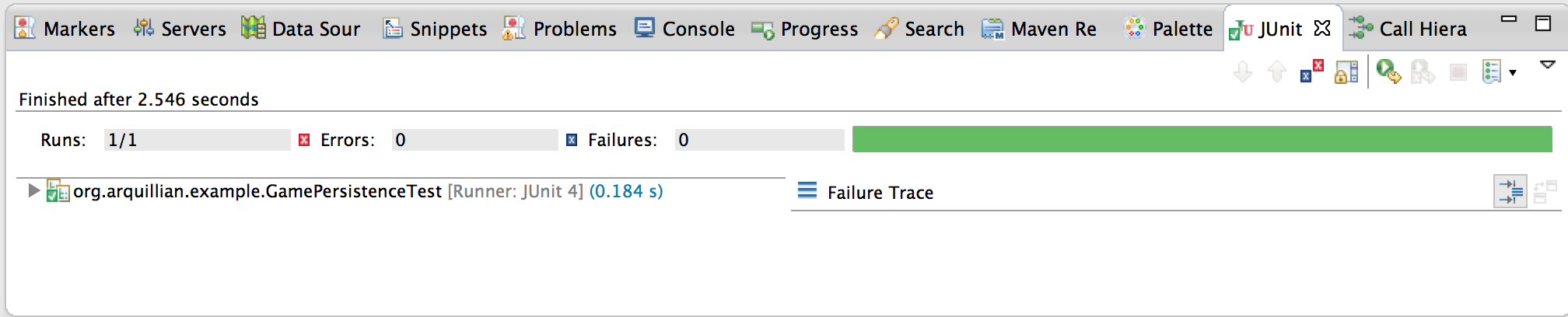

JUnit窓

ログ

17:54:11,145 INFO  [org.jboss.as.repository] (management-handler-thread - 17) JBAS014900: Content added at location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/7d/5f3376f9a12e783c3e26d6d58e51ffcf03c103/content
17:54:11,147 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-12) JBAS015876: Starting deployment of "arquillian-service" (runtime-name: "arquillian-service")
17:54:11,206 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-7) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.as.jmx:main") which may be changed or removed in future versions without notice.
17:54:11,206 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-7) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.as.server:main") which may be changed or removed in future versions without notice.
17:54:11,207 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-7) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.jboss.jandex:main") which may be changed or removed in future versions without notice.
17:54:11,207 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-7) JBAS018567: Deployment "deployment.arquillian-service" is using a private module ("org.wildfly.security.manager:main") which may be changed or removed in future versions without notice.
17:54:11,211 WARN  [org.jboss.weld.deployer] (MSC service thread 1-12) JBAS016012: Deployment deployment "arquillian-service" contains CDI annotations but no bean archive was not found. (No beans.xml nor class with bean defining annotations)
17:54:11,222 INFO  [org.jboss.as.server] (management-handler-thread - 17) JBAS018559: Deployed "arquillian-service" (runtime-name : "arquillian-service")
17:54:11,873 INFO  [org.jboss.as.repository] (management-handler-thread - 17) JBAS014900: Content added at location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/ec/f5873a270286159d851f049b3d6d3d50d72491/content
17:54:11,875 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-6) JBAS015876: Starting deployment of "test.war" (runtime-name: "test.war")
17:54:11,890 INFO  [org.jboss.as.jpa] (MSC service thread 1-10) JBAS011401: Read persistence.xml for test
17:54:11,898 WARN  [org.jboss.as.dependency.private] (MSC service thread 1-11) JBAS018567: Deployment "deployment.test.war" is using a private module ("org.wildfly.security.manager:main") which may be changed or removed in future versions without notice.
17:54:11,900 INFO  [org.jboss.as.connector.subsystems.datasources] (MSC service thread 1-1) JBAS010400: Bound data source [java:/jdbc/arquillian]
17:54:11,900 INFO  [org.jboss.as.jpa] (ServerService Thread Pool -- 79) JBAS011409: Starting Persistence Unit (phase 1 of 2) Service 'test.war#test'
17:54:11,901 INFO  [org.hibernate.jpa.internal.util.LogHelper] (ServerService Thread Pool -- 79) HHH000204: Processing PersistenceUnitInfo [
    name: test
    ...]
17:54:11,909 INFO  [org.jboss.weld.deployer] (MSC service thread 1-11) JBAS016002: Processing weld deployment test.war
17:54:11,917 INFO  [org.jboss.weld.deployer] (MSC service thread 1-3) JBAS016005: Starting Services for CDI deployment: test.war
17:54:11,920 INFO  [org.jboss.weld.deployer] (MSC service thread 1-4) JBAS016008: Starting weld service for deployment test.war
17:54:11,921 INFO  [org.jboss.as.arquillian] (MSC service thread 1-3) Arquillian deployment detected: ArquillianConfig[service=jboss.arquillian.config."test.war",unit=test.war,tests=[org.arquillian.example.GreeterTest, org.arquillian.example.GamePersistenceTest]]
17:54:11,924 INFO  [org.jboss.as.jpa] (ServerService Thread Pool -- 79) JBAS011409: Starting Persistence Unit (phase 2 of 2) Service 'test.war#test'
17:54:11,932 INFO  [org.hibernate.dialect.Dialect] (ServerService Thread Pool -- 79) HHH000400: Using dialect: org.hibernate.dialect.H2Dialect
17:54:11,933 WARN  [org.hibernate.dialect.H2Dialect] (ServerService Thread Pool -- 79) HHH000431: Unable to determine H2 database version, certain features may not work
17:54:11,935 INFO  [org.hibernate.hql.internal.ast.ASTQueryTranslatorFactory] (ServerService Thread Pool -- 79) HHH000397: Using ASTQueryTranslatorFactory
17:54:11,945 INFO  [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 79) HHH000227: Running hbm2ddl schema export
17:54:11,946 INFO  [stdout] (ServerService Thread Pool -- 79) Hibernate: drop table Game if exists
17:54:11,946 INFO  [stdout] (ServerService Thread Pool -- 79) Hibernate: drop sequence hibernate_sequence
17:54:11,947 ERROR [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 79) HHH000389: Unsuccessful: drop sequence hibernate_sequence
17:54:11,947 ERROR [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 79) シーケンス "HIBERNATE_SEQUENCE" が見つかりません
Sequence "HIBERNATE_SEQUENCE" not found; SQL statement:
drop sequence hibernate_sequence [90036-173]
17:54:11,947 INFO  [stdout] (ServerService Thread Pool -- 79) Hibernate: create table Game (id bigint not null, title varchar(50) not null, primary key (id))
17:54:11,948 INFO  [stdout] (ServerService Thread Pool -- 79) Hibernate: create sequence hibernate_sequence start with 1 increment by 1
17:54:11,948 INFO  [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 79) HHH000230: Schema export complete
17:54:12,078 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-14) JBAS017534: Register web context: /test
17:54:12,086 INFO  [org.jboss.as.server] (management-handler-thread - 17) JBAS018559: Deployed "test.war" (runtime-name : "test.war")
17:54:12,197 INFO  [stdout] (pool-2-thread-5) Dumping old records...
17:54:12,200 INFO  [stdout] (pool-2-thread-5) Hibernate: delete from Game
17:54:12,202 INFO  [stdout] (pool-2-thread-5) Inserting records...
17:54:12,202 INFO  [stdout] (pool-2-thread-5) Hibernate: call next value for hibernate_sequence
17:54:12,203 INFO  [stdout] (pool-2-thread-5) Hibernate: call next value for hibernate_sequence
17:54:12,204 INFO  [stdout] (pool-2-thread-5) Hibernate: call next value for hibernate_sequence
17:54:12,209 INFO  [stdout] (pool-2-thread-5) Hibernate: insert into Game (title, id) values (?, ?)
17:54:12,210 INFO  [stdout] (pool-2-thread-5) Hibernate: insert into Game (title, id) values (?, ?)
17:54:12,211 INFO  [stdout] (pool-2-thread-5) Hibernate: insert into Game (title, id) values (?, ?)
17:54:12,214 INFO  [stdout] (pool-2-thread-5) Selecting (using JPQL)...
17:54:12,216 INFO  [stdout] (pool-2-thread-5) Hibernate: select game0_.id as id1_0_, game0_.title as title2_0_ from Game game0_ order by game0_.id
17:54:12,218 INFO  [stdout] (pool-2-thread-5) Found 3 games (using JPQL):
17:54:12,218 INFO  [stdout] (pool-2-thread-5) * Game@649254855[id = 1; title = Super Mario Brothers]
17:54:12,218 INFO  [stdout] (pool-2-thread-5) * Game@661937578[id = 2; title = Mario Kart]
17:54:12,218 INFO  [stdout] (pool-2-thread-5) * Game@1219581986[id = 3; title = F-Zero]
17:54:12,247 INFO  [org.wildfly.extension.undertow] (MSC service thread 1-14) JBAS017535: Unregister web context: /test
17:54:12,248 SEVERE [javax.faces] (MSC service thread 1-14) Unable to obtain InjectionProvider from init time FacesContext. Does this container implement the Mojarra Injection SPI?
17:54:12,248 SEVERE [javax.faces] (MSC service thread 1-14) Unable to call @PreDestroy annotated methods because no InjectionProvider can be found. Does this container implement the Mojarra Injection SPI?
17:54:12,248 SEVERE [javax.faces] (MSC service thread 1-14) Unable to obtain InjectionProvider from init time FacesContext. Does this container implement the Mojarra Injection SPI?
17:54:12,248 SEVERE [javax.faces] (MSC service thread 1-14) Unable to call @PreDestroy annotated methods because no InjectionProvider can be found. Does this container implement the Mojarra Injection SPI?
17:54:12,249 INFO  [org.jboss.as.jpa] (ServerService Thread Pool -- 83) JBAS011410: Stopping Persistence Unit (phase 2 of 2) Service 'test.war#test'
17:54:12,250 INFO  [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 83) HHH000227: Running hbm2ddl schema export
17:54:12,250 INFO  [stdout] (ServerService Thread Pool -- 83) Hibernate: drop table Game if exists
17:54:12,251 INFO  [stdout] (ServerService Thread Pool -- 83) Hibernate: drop sequence hibernate_sequence
17:54:12,252 INFO  [org.hibernate.tool.hbm2ddl.SchemaExport] (ServerService Thread Pool -- 83) HHH000230: Schema export complete
17:54:12,252 INFO  [org.jboss.weld.deployer] (MSC service thread 1-14) JBAS016009: Stopping weld service for deployment test.war
17:54:12,256 INFO  [org.jboss.as.jpa] (ServerService Thread Pool -- 83) JBAS011410: Stopping Persistence Unit (phase 1 of 2) Service 'test.war#test'
17:54:12,256 INFO  [org.jboss.as.connector.subsystems.datasources] (MSC service thread 1-2) JBAS010409: Unbound data source [java:/jdbc/arquillian]
17:54:12,260 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-8) JBAS015877: Stopped deployment test.war (runtime-name: test.war) in 14ms
17:54:12,270 INFO  [org.jboss.as.repository] (management-handler-thread - 19) JBAS014901: Content removed from location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/ec/f5873a270286159d851f049b3d6d3d50d72491/content
17:54:12,271 INFO  [org.jboss.as.server] (management-handler-thread - 19) JBAS018558: Undeployed "test.war" (runtime-name: "test.war")
17:54:12,286 INFO  [org.jboss.as.server.deployment] (MSC service thread 1-8) JBAS015877: Stopped deployment arquillian-service (runtime-name: arquillian-service) in 3ms
17:54:12,294 INFO  [org.jboss.as.repository] (management-handler-thread - 20) JBAS014901: Content removed from location /Users/kyle/apps/wildfly-8.0.0.CR1/standalone/data/content/7d/5f3376f9a12e783c3e26d6d58e51ffcf03c103/content
17:54:12,295 INFO  [org.jboss.as.server] (management-handler-thread - 20) JBAS018558: Undeployed "arquillian-service" (runtime-name: "arquillian-service")

ロガーを設定してみるで書いたHibernateのロガーの設定をしている場合は、Hibernateのログが2重に出力されてしまうので、一時的に以下のようにコンソールのログレベルを変えておくと良いかもしれません。以下jboss-cli用コマンド

/subsystem=logging/console-handler=CONSOLE:change-log-level(level=INFO)

参考文献

  1. Arquillian WildFly 8 Remote Container Adapter · Arquillian
  2. How to change JRE / JDK in Eclipse project.

添付資料

JREを変更しないと発生する例外

java.lang.RuntimeException: Could not create new instance of class org.jboss.arquillian.test.impl.EventTestRunnerAdaptor
    at org.jboss.arquillian.test.spi.SecurityActions.newInstance(SecurityActions.java:160)
    at org.jboss.arquillian.test.spi.SecurityActions.newInstance(SecurityActions.java:111)
    at org.jboss.arquillian.test.spi.SecurityActions.newInstance(SecurityActions.java:97)
    at org.jboss.arquillian.test.spi.TestRunnerAdaptorBuilder.build(TestRunnerAdaptorBuilder.java:52)
    at org.jboss.arquillian.junit.Arquillian.run(Arquillian.java:93)
    at org.eclipse.jdt.internal.junit4.runner.JUnit4TestReference.run(JUnit4TestReference.java:50)
    at org.eclipse.jdt.internal.junit.runner.TestExecution.run(TestExecution.java:38)
    at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:467)
    at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.runTests(RemoteTestRunner.java:683)
    at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.run(RemoteTestRunner.java:390)
    at org.eclipse.jdt.internal.junit.runner.RemoteTestRunner.main(RemoteTestRunner.java:197)
Caused by: java.lang.reflect.InvocationTargetException
    at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
    at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:39)
    at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:27)
    at java.lang.reflect.Constructor.newInstance(Constructor.java:513)
    at org.jboss.arquillian.test.spi.SecurityActions.newInstance(SecurityActions.java:156)
    ... 10 more
Caused by: java.lang.RuntimeException: Could not create new instance of class org.jboss.arquillian.core.impl.ManagerImpl
    at org.jboss.arquillian.core.spi.SecurityActions.newInstance(SecurityActions.java:160)
    at org.jboss.arquillian.core.spi.SecurityActions.newInstance(SecurityActions.java:111)
    at org.jboss.arquillian.core.spi.SecurityActions.newInstance(SecurityActions.java:97)
    at org.jboss.arquillian.core.spi.ManagerBuilder.create(ManagerBuilder.java:77)
    at org.jboss.arquillian.test.impl.EventTestRunnerAdaptor.<init>(EventTestRunnerAdaptor.java:55)
    ... 15 more
Caused by: java.lang.reflect.InvocationTargetException
    at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
    at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:39)
    at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:27)
    at java.lang.reflect.Constructor.newInstance(Constructor.java:513)
    at org.jboss.arquillian.core.spi.SecurityActions.newInstance(SecurityActions.java:156)
    ... 19 more
Caused by: java.lang.UnsupportedClassVersionError: org/jboss/as/arquillian/container/remote/RemoteContainerExtension : Unsupported major.minor version 51.0
    at java.lang.ClassLoader.defineClass1(Native Method)
    at java.lang.ClassLoader.defineClassCond(ClassLoader.java:637)
    at java.lang.ClassLoader.defineClass(ClassLoader.java:621)
    at java.security.SecureClassLoader.defineClass(SecureClassLoader.java:141)
    at java.net.URLClassLoader.defineClass(URLClassLoader.java:283)
    at java.net.URLClassLoader.access$000(URLClassLoader.java:58)
    at java.net.URLClassLoader$1.run(URLClassLoader.java:197)
    at java.security.AccessController.doPrivileged(Native Method)
    at java.net.URLClassLoader.findClass(URLClassLoader.java:190)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:306)
    at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:301)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:247)
    at org.jboss.arquillian.core.impl.loadable.JavaSPIExtensionLoader.load(JavaSPIExtensionLoader.java:108)
    at org.jboss.arquillian.core.impl.loadable.JavaSPIExtensionLoader.all(JavaSPIExtensionLoader.java:65)
    at org.jboss.arquillian.core.impl.loadable.JavaSPIExtensionLoader.load(JavaSPIExtensionLoader.java:53)
    at org.jboss.arquillian.core.impl.loadable.LoadableExtensionLoader.load(LoadableExtensionLoader.java:73)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
    at java.lang.reflect.Method.invoke(Method.java:597)
    at org.jboss.arquillian.core.impl.ObserverImpl.invoke(ObserverImpl.java:94)
    at org.jboss.arquillian.core.impl.EventContextImpl.invokeObservers(EventContextImpl.java:99)
    at org.jboss.arquillian.core.impl.EventContextImpl.proceed(EventContextImpl.java:81)
    at org.jboss.arquillian.core.impl.ManagerImpl.fire(ManagerImpl.java:135)
    at org.jboss.arquillian.core.impl.ManagerImpl.fire(ManagerImpl.java:115)
    at org.jboss.arquillian.core.impl.ManagerImpl.fireProcessing(ManagerImpl.java:316)
    at org.jboss.arquillian.core.impl.ManagerImpl.<init>(ManagerImpl.java:98)
    ... 24 more
